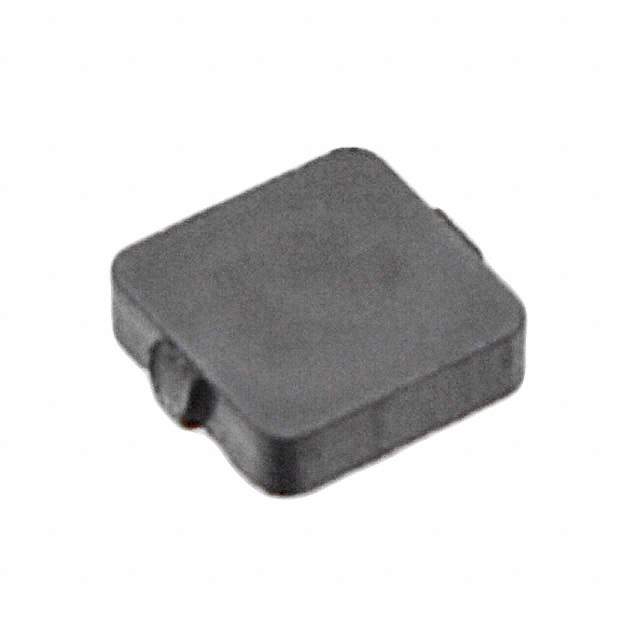

Same model may have multiple batches, images only for reference.

SRP4012-R56M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP4012-R56M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP4012
Package	Tape & Reel
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	560 nH
Tolerance	±20%
Current Rating (Amps)	5.5 A
Current - Saturation (Isat)	8A
Shielding	Shielded
DC Resistance (DCR)	25mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.185" L x 0.157" W (4.70mm x 4.00mm)
Height - Seated (Max)	0.047" (1.20mm)
Base Product Number	SRP4012
Other Names	SRP4012R56M,SRP4012-R56MCT,SRP4012-R56MDKR,SRP4012-R56MTR
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273940-SRP4012-R56M
Ultra Librarian 3D Model	Ultra Librarian SRP4012-R56M CAD Model

Alternative Products

Description

The SRP4012-R56M is a drum core, wirewound inductor designed for use in various electronic applications.

Shielding: Shielded
Packaging: tape and reel
Inductance: 560 nH
Tolerance: ±20%
Core Material: iron
DC Resistance: 25mOhm Max
Current Rating: 5.5 A
Dimension: 0.185" L x 0.157" W (4.70mm x 4.00mm)
Operating Temperature Range: -55°C ~ 125°C
