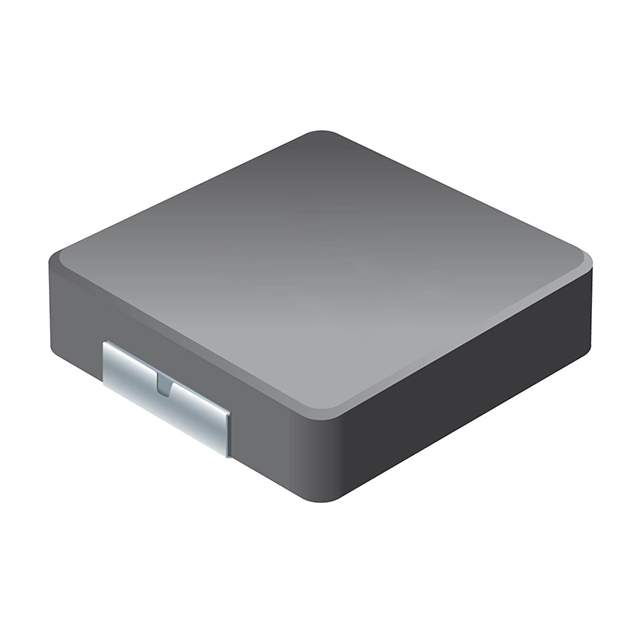

SRP3020TA-R33M Real Image
Same model may have multiple batches, images only for reference.

SRP3020TA-R33M

Part No SRP3020TA-R33M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3020TA-R33M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 330 nH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 21mOhm Max
Q @ Freq 5 @ 100kHz
Frequency - Self Resonant 160MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP3020TA
Other Names SRP3020TA-R33MTR,SRP3020TA-R33MDKR,SRP3020TA-R33MCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273947-SRP3020TA-R33M
Ultra Librarian 3D Model Ultra Librarian SRP3020TA-R33M CAD Model

Description

The Bourns Inc. SRP3020TA-R33MTR is a fixed inductor that belongs to the SRP3020TA series.

  • Type: drum core, wirewound
  • Shielding: Shielded
  • Package: tape & reel
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Material Core: carbonyl powder
  • Inductance: 330 nH
  • Height: 0.079" (2.00mm)
  • DC Resistance (DCR): 21mOhm
  • Current Rating: 8A
  • Operating Temperature: -40°C ~ 150°C
