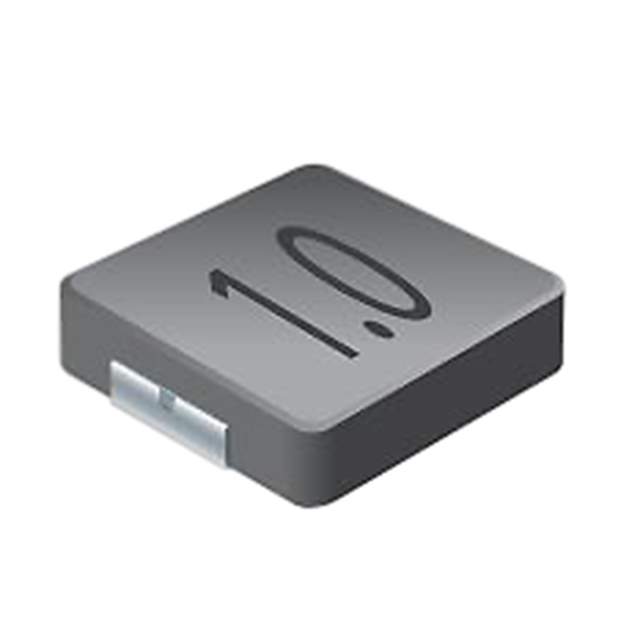

Same model may have multiple batches, images only for reference.

SRP3012TA-R68M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP3012TA-R68M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP3012TA-R68M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP3012TA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	680 nH
Tolerance	±20%
Current Rating (Amps)	4 A
Current - Saturation (Isat)	6.1A
Shielding	Shielded
DC Resistance (DCR)	40mOhm Max
Frequency - Self Resonant	85MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD
Supplier Device Package	2-SMD
Dimension	0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max)	0.047" (1.20mm)
Base Product Number	SRP3012TA
Other Names	SRP3012TA-R68MDKR,SRP3012TA-R68MCT,SRP3012TA-R68MTR
Standard Package	4,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273968-SRP3012TA-R68M
Ultra Librarian 3D Model	Ultra Librarian SRP3012TA-R68M CAD Model

Alternative Products

Description

The SRP3012TA-R68M is a shielded drum core inductor from Bourns Inc.

Type: Wirewound
Inductance: 680 nH
Tolerance: ±20%
Rated Current: 4 A
DC Resistance (DCR): 40 mOhm max
Height: 0.047" (1.20 mm)
Dimension: 0.138" L x 0.126" W (3.50 mm x 3.20 mm)
Rating: AEC-Q200 rated
Frequency Self-Resonant: 85 MHz
Package: Tape and Reel
Standard Package: 4,000
