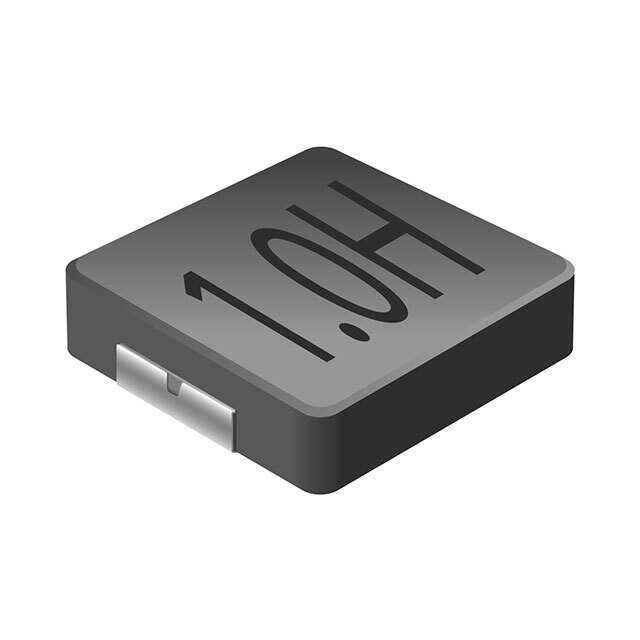

SRP3012C-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRP3012C-1R0M

Part No SRP3012C-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3012C-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3012C
Package Tape & Reel
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 5.2A
Shielding Shielded
DC Resistance (DCR) 60mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Other Names 118-SRP3012C-1R0MDKR,118-SRP3012C-1R0MCT,118-SRP3012C-1R0MTR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273989-SRP3012C-1R0M
Ultra Librarian 3D Model Ultra Librarian SRP3012C-1R0M CAD Model

Description

The Bourns Inc. fixed inductor with Win Source Part Number 1273989-SRP3012C-1R0M is part of the SRP3012C series.

  • Type/Features: Not specified
  • Packaging: Tape & Reel
  • Shielding: Yes
  • Core Material: Metal
  • Inductance: 1 µH
  • Tolerance: ±20%
  • Q @ Freq: 10 @ 100kHz
  • Frequency Self-Resonant: 50MHz
  • Case/Package: Non-standard
  • Height: 0.047" (1.20mm)
  • Standard Package: 4,000
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 60mOhm Max
  • Supplier Device Package: Not specified
  • Operating Temperature Range: -40°C ~ 125°C
  • Dimension: 0.138" L x 0.126" W (3.50mm x 3.20mm)
  • Supply and Demand: Balanced
