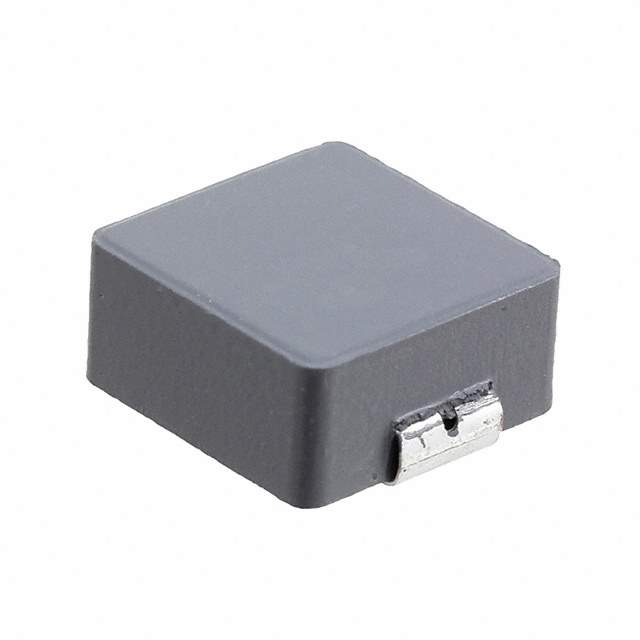

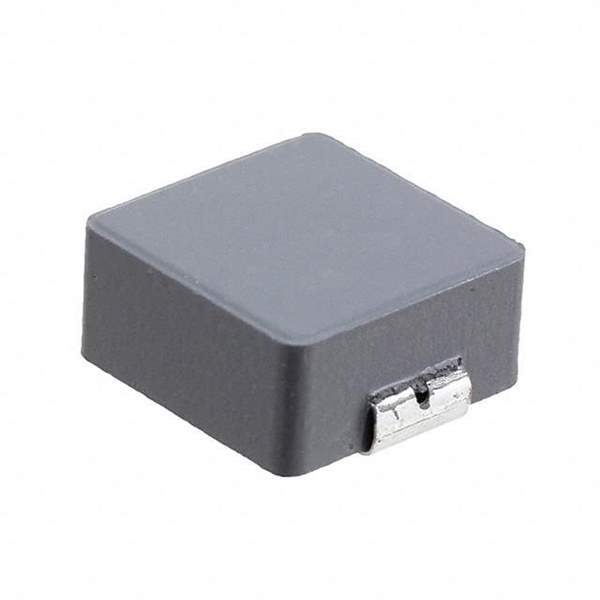

Same model may have multiple batches, images only for reference.

SRP1265A-R15M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1265A-R15M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1265A-R15M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1265A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	150 nH
Tolerance	±20%
Current Rating (Amps)	55 A
Current - Saturation (Isat)	118A
Shielding	Shielded
DC Resistance (DCR)	0.6mOhm Max
Q @ Freq	10 @ 100kHz
Frequency - Self Resonant	210MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max)	0.252" (6.40mm)
Base Product Number	SRP1265A
Other Names	SRP1265A-R15MTR,SRP1265A-R15MCT,SRP1265A-R15MDKR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274045-SRP1265A-R15M
Ultra Librarian 3D Model	Ultra Librarian SRP1265A-R15M CAD Model

Alternative Products

Description

The SRP1265A-R15M is a fixed inductor designed by Bourns Inc.

Shielding: Shielded
Package: Tape & Reel
Inductance: 150 nH
Height - Seated (Max): 0.252" (6.40mm)
Standard Package: 500
Mounting Type: SMD (SMT)
Tolerance: ±20%
Ratings: AEC-Q200
Material - Core: Carbonyl Powder
Q @ Freq: 10 @ 100kHz
Frequency - Self Resonant: 210MHz
Package / Case: Nonstandard
DC Resistance (DCR): 0.6mOhm Max
Supplier Device Package: Not Available
Temperature Range - Operating: -40°C to 150°C
Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
ECCN: EAR99
MSL Level: 1 (Unlimited)
REACH Status: REACH Unaffected
HTSUS: 8504.50.4000
Other Names: SRP1265A-R15MTR, SRP1265A-R15MCT, SRP1265A-R15MDKR
Base Product Number: SRP1265A
Current - Saturation (Isat): 118A
