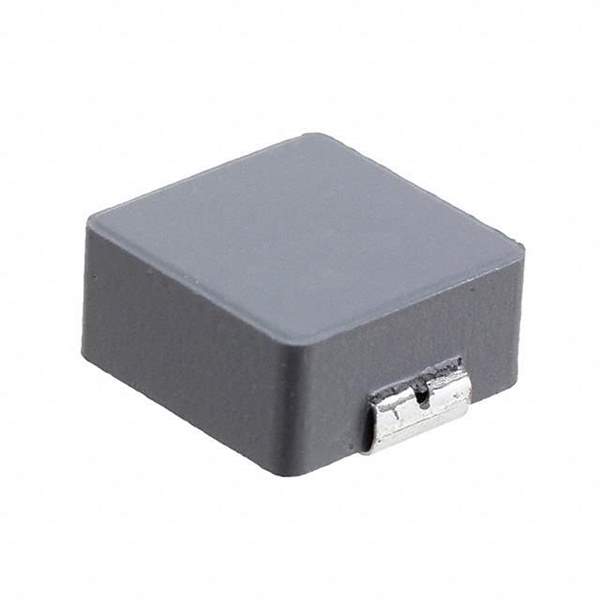

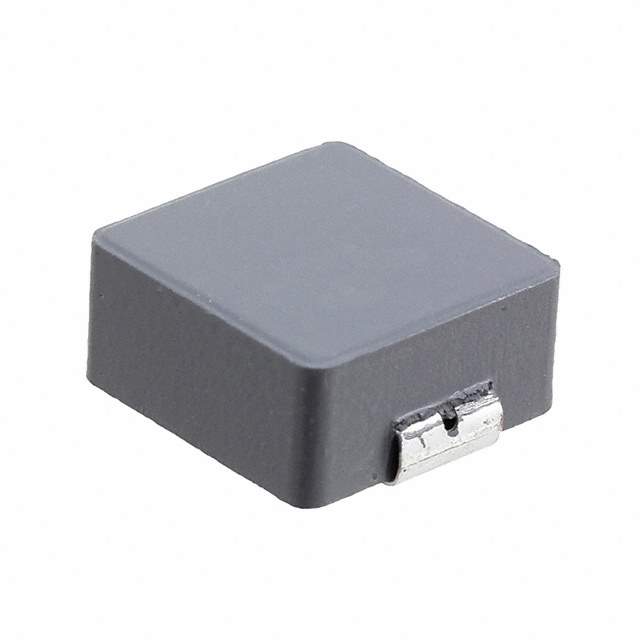

SRP1265A-1R8M Real Image
Same model may have multiple batches, images only for reference.

SRP1265A-1R8M

Part No SRP1265A-1R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1265A-1R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1265A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 1.8 µH
Tolerance ±20%
Current Rating (Amps) 24 A
Current - Saturation (Isat) 40A
Shielding Shielded
DC Resistance (DCR) 4mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 30MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.252" (6.40mm)
Base Product Number SRP1265A
Other Names SRP1265A-1R8MCT,SRP1265A-1R8MTR,SRP1265A-1R8MDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274046-SRP1265A-1R8M
Ultra Librarian 3D Model Ultra Librarian SRP1265A-1R8M CAD Model

Description

The SRP1265A-1R8M is a fixed inductor from Bourns Inc.

  • Core Type: Drum Core, Wirewound
  • Shielding: Shielding Feature
  • Inductance: 1.8 µH
  • Tolerance: ±20%
  • Standard Package: 500
  • Mounting Type: SMD (SMT)
  • Material-Core: Carbonyl Powder
  • Q @ Freq: 20 @ 100kHz
  • Frequency Self-Resonant: 30MHz
  • DC Resistance (DCR): 4mOhm Max
  • Temperature Range: -40°C ~ 150°C
  • Current Rating: 24A
  • Current Saturation (Isat): 40A
  • Series: SRP1265A
  • Alternative Names: SRP1265A-1R8MCT, SRP1265A-1R8MTR, and SRP1265A-1R8MDKR
