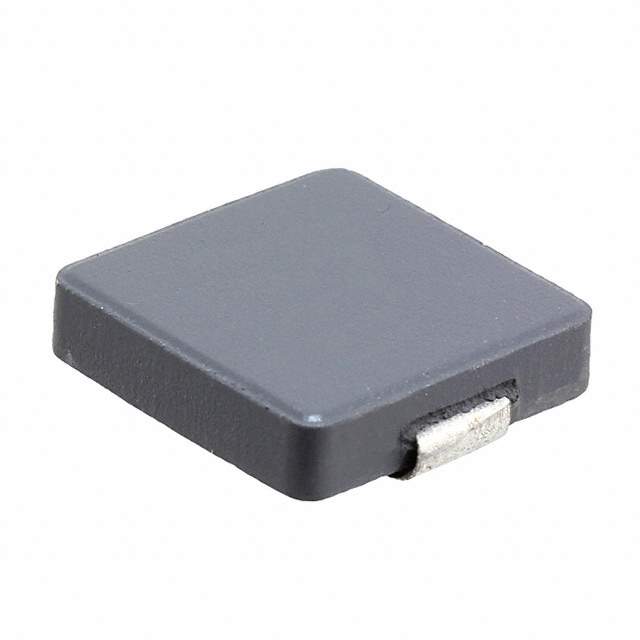

SRP1238A-R10Y Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-R10Y

Part No SRP1238A-R10Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1238A-R10Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 100 nH
Tolerance ±30%
Current Rating (Amps) 43 A
Current - Saturation (Isat) 84A
Shielding Shielded
DC Resistance (DCR) 0.43mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 175MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
Other Names SRP1238A-R10YTR,SRP1238A-R10YDKR,SRP1238A-R10YCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274091-SRP1238A-R10Y
Ultra Librarian 3D Model Ultra Librarian SRP1238A-R10Y CAD Model

Description

The SRP1238A series is a drum core, wirewound type of fixed inductor that is shielded with an inductance of 100 nH and a tolerance of ±30%.

  • Height Seated: 0.138" (3.50mm)
  • DC Resistance: 0.43mOhm (Max)
  • Package: Tape and reel
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • Material Core: Carbonyl powder
  • Temperature Range: -40°C ~ 150°C
  • ECCN: EAR99
  • Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
  • Current Rating: 43A
  • Inductance Frequency Test: 100 kHz
