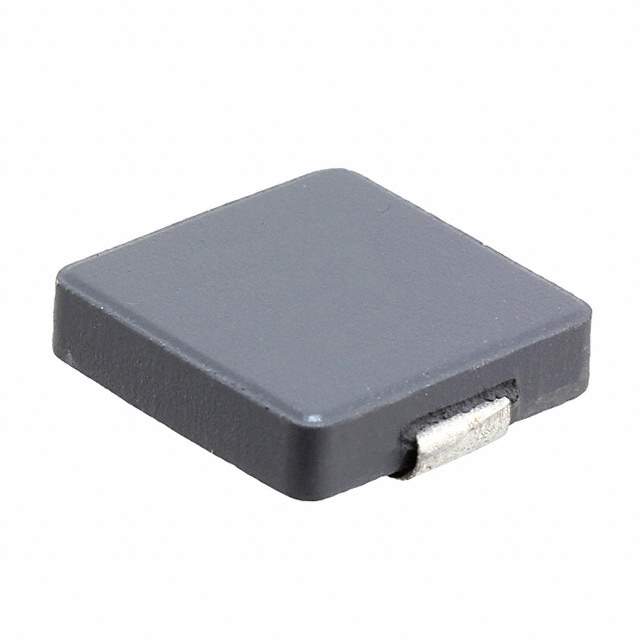

Same model may have multiple batches, images only for reference.

SRP1238A-6R8M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1238A-6R8M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1238A-6R8M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1238A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	6.8 µH
Tolerance	±20%
Current Rating (Amps)	9 A
Current - Saturation (Isat)	18A
Shielding	Shielded
DC Resistance (DCR)	24mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	13MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max)	0.138" (3.50mm)
Base Product Number	SRP1238A
Other Names	SRP1238A-6R8MDKR,2266-SRP1238A-6R8M,SRP1238A-6R8MCT,SRP1238A-6R8MTR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274083-SRP1238A-6R8M
Ultra Librarian 3D Model	Ultra Librarian SRP1238A-6R8M CAD Model

Alternative Products

Description

The Bourns SRP1238A-6R8M is a drum core, wirewound inductor designed for use in various electronic applications.

Inductance: 6.8 µH
Tolerance: ±20%
Current Rating: 9 A
Shielding Material: Carbonyl powder
Mounting: SMD (SMT)
Package/Case: Nonstandard
DC Resistance (DCR): 24mOhm Max
Q @ Freq: 20 @ 100kHz
Frequency - Self-Resonant: 13MHz
Temperature Range: -40°C to 150°C
Rated: AEC-Q200
Standard Package: 500
