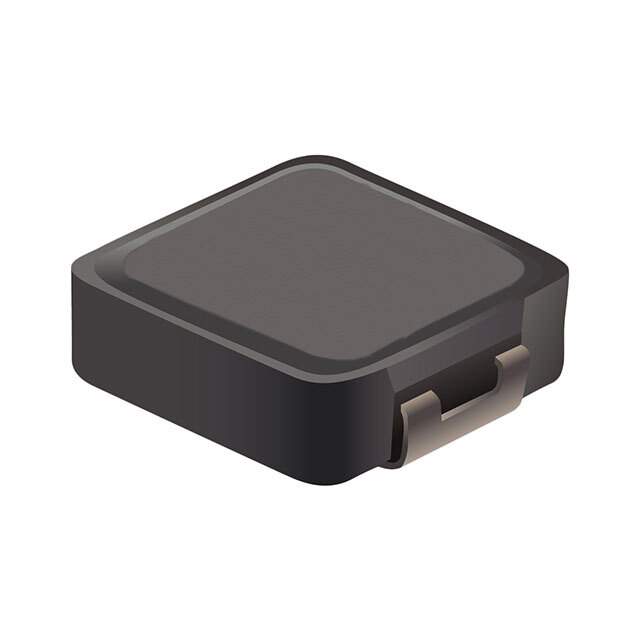

SRP1038C-150M Real Image
Same model may have multiple batches, images only for reference.

SRP1038C-150M

Part No SRP1038C-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1038C-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1038C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 6.3 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 45mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 9MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names SRP1038C-150MCT,SRP1038C-150MDKR,SRP1038C-150MTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274151-SRP1038C-150M
Ultra Librarian 3D Model Ultra Librarian SRP1038C-150M CAD Model

Description

Bourns Inc. SRP1038C-150M is a fixed inductor with a drum core and wirewound type.

  • Package: Tape and Reel
  • Shielding: Shielded
  • Height: 0.157" (4.00mm)
  • Standard Package: 500
  • Inductance: 15 μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 45mOhm max
  • Current Rating (amps): 6.3A
  • Inductance Frequency-Test: 100kHz
  • Frequency-Self Resonant: 9MHz
  • Q @ Freq: 20 @ 100kHz
  • ECCN: EAR99
  • REACH: Unaffected
  • Other Names: SRP1038C-150MCT, SRP1038C-150MDKR, and SRP1038C-150MTR
