Same model may have multiple batches, images only for reference.

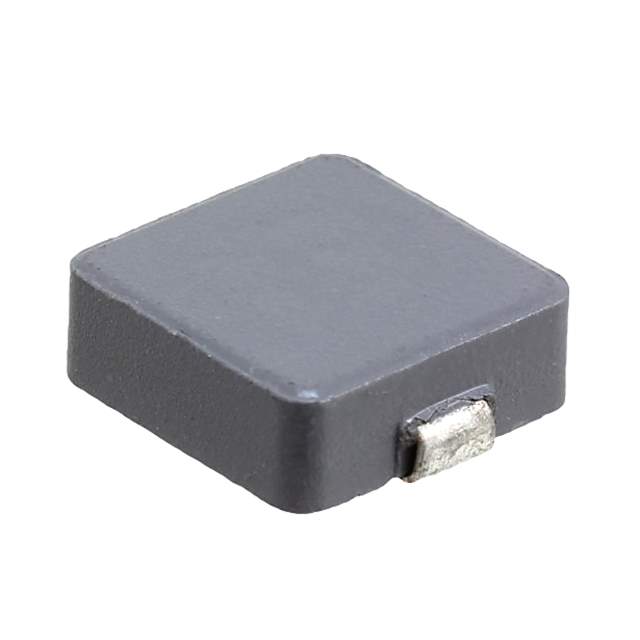

SRP1038A-R36M Real Image
Same model may have multiple batches, images only for reference.

SRP1038A-R36M

Part No SRP1038A-R36M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1038A-R36M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1038A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 360 nH
Tolerance ±20%
Current Rating (Amps) 31 A
Current - Saturation (Isat) 60A
Shielding Shielded
DC Resistance (DCR) 1.2mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 105MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRP1038A
Other Names SRP1038A-R36MTR,SRP1038A-R36MCT,SRP1038A-R36MDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274156-SRP1038A-R36M
Ultra Librarian 3D Model Ultra Librarian SRP1038A-R36M CAD Model

Description

The SRP1038A-R36M is a shielded drum core, wirewound inductor from Bourns Inc.

  • Inductance: 360 nH
  • Q @ Freq: 15 @ 100kHz
  • AEC-Q200 Rated: Yes
  • DC Resistance (DCR): 1.2mOhm Max
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Material: Carbonyl Powder
  • Frequency of Self-Resonant: 105MHz
  • Current Rating: 31 A
  • Operating Temperature Range: -40°C to 150°C
  • Package / Case: Nonstandard
  • Height: 0.157" (4.00mm)
  • Packaging: Tape & Reel
  • Standard Package: 500
  • Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • ECCN: EAR99
  • REACH Status: Unaffected
  • HTSUS code: 8504.50.4000
