Same model may have multiple batches, images only for reference.

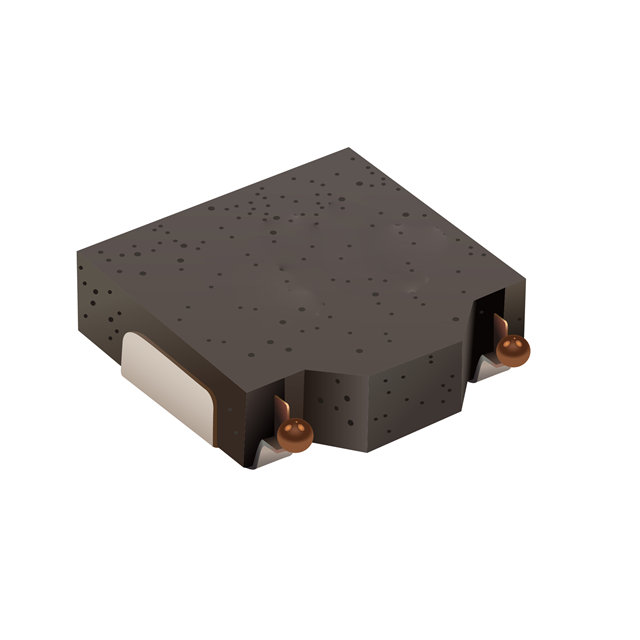

SRP0510-4R7K Real Image
Same model may have multiple batches, images only for reference.

SRP0510-4R7K

Part No SRP0510-4R7K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP0510-4R7K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0510
Package Tape & Reel
Product Status Last Time Buy
Material - Core Metal
Inductance 4.7 µH
Tolerance ±10%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 3.6A
Shielding Shielded
DC Resistance (DCR) 151mOhm Max
Q @ Freq 25 @ 7.96MHz
Frequency - Self Resonant 21MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max) 0.039" (1.00mm)
Other Names 118-SRP0510-4R7KCT,118-SRP0510-4R7KTR,118-SRP0510-4R7KDKR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274207-SRP0510-4R7K
Ultra Librarian 3D Model Ultra Librarian SRP0510-4R7K CAD Model

Description

The Bourns Inc. SRP0510-4R7K is a shielded inductor.

  • Inductance: 4.7 µH
  • Package: Nonstandard
  • Q @ Freq: 25 @ 7.96MHz
  • Frequency of Self-Resonant: 21MHz
  • DC Resistance (DCR): 151mOhm Max
  • Current Rating: 2.4 A
  • Height: 0.039" (1.00mm)
  • Package Size: 0.213" L x 0.201" W (5.40mm x 5.10mm)
  • Material: Metal
  • Tolerance: ±10%
  • Mounting: SMD (SMT)
