Same model may have multiple batches, images only for reference.

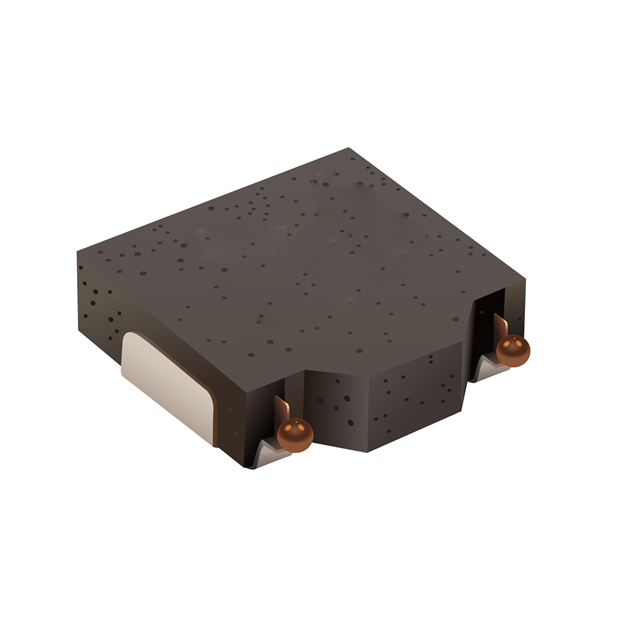

SRP0510-1R0K Real Image
Same model may have multiple batches, images only for reference.

SRP0510-1R0K

Part No SRP0510-1R0K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP0510-1R0K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0510
Package Tape & Reel
Product Status Last Time Buy
Material - Core Metal
Inductance 1 µH
Tolerance ±10%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 8A
Shielding Shielded
DC Resistance (DCR) 57mOhm Max
Q @ Freq 41 @ 7.96MHz
Frequency - Self Resonant 51MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max) 0.039" (1.00mm)
Other Names 118-SRP0510-1R0KTR,118-SRP0510-1R0KCT,118-SRP0510-1R0KDKR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274210-SRP0510-1R0K
Ultra Librarian 3D Model Ultra Librarian SRP0510-1R0K CAD Model

Description

The Bourns SRP0510-1R0K is a fixed inductor.

  • Package: Tape & reel
  • Shielded: Yes
  • Inductance: 1 µH
  • Height-Seated (Max): 0.039" (1.00mm)
  • Standard Package: 4,000
  • Mounting: SMD (SMT)
  • Tolerance: ±10%
  • Material: Metal core
  • Q @ Freq: 41 @ 7.96MHz
  • Frequency-Self-Resonant: 51MHz
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 57mOhm Max
  • Current Rating (Amps): 4 A
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.213" L x 0.201" W (5.40mm x 5.10mm)
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
  • Last Time Buy: Yes
