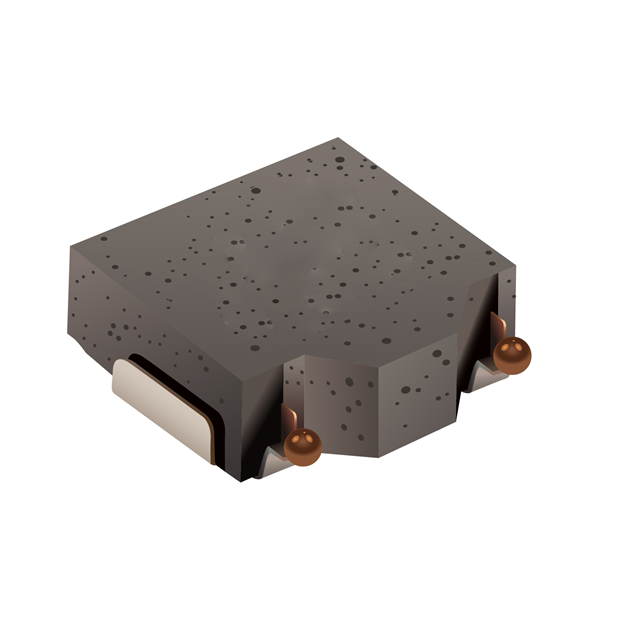

SRP0410-1R5K Real Image
Same model may have multiple batches, images only for reference.

SRP0410-1R5K

Part No SRP0410-1R5K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP0410-1R5K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP0410
Package Tape & Reel
Product Status Last Time Buy
Material - Core Metal
Inductance 1.5 µH
Tolerance ±10%
Current Rating (Amps) 3.9 A
Current - Saturation (Isat) 4.8A
Shielding Shielded
DC Resistance (DCR) 64mOhm Max
Q @ Freq 35 @ 7.96MHz
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max) 0.039" (1.00mm)
Other Names 118-SRP0410-1R5KDKR,118-SRP0410-1R5KCT,118-SRP0410-1R5KTR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274235-SRP0410-1R5K
Ultra Librarian 3D Model Ultra Librarian SRP0410-1R5K CAD Model

Description

The SRP0410-1R5K from Bourns Inc. is a fixed inductor with an inductance of 1.5μH and a maximum DC resistance of 64mOhm.

  • Q @ Freq: 35 @ 7.96MHz
  • Frequency - Self Resonant: 40MHz
  • Shielding: Shielded
  • Package / Case: Non-standard
  • Mounting Type: Surface Mount
  • Tolerance: ±10%
  • Temperature Range: -40°C to 125°C
  • Current Rating: 3.9A
