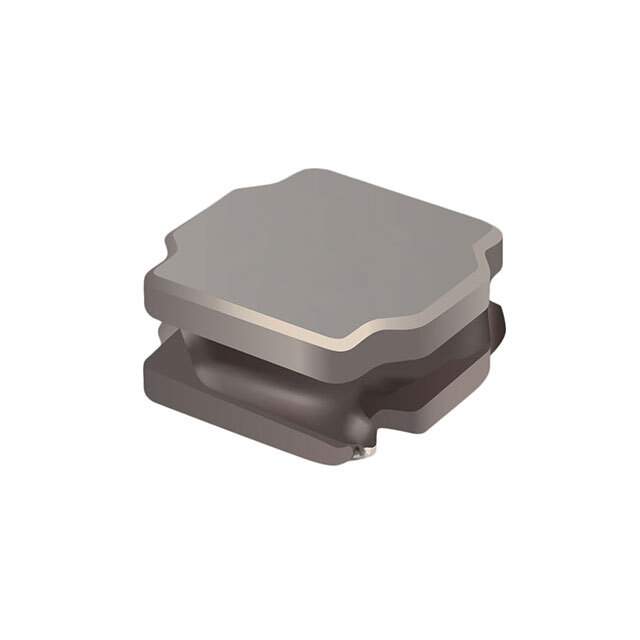

SRN8040TA-151M Real Image
Same model may have multiple batches, images only for reference.

SRN8040TA-151M

Part No SRN8040TA-151M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN8040TA-151M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN8040TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±20%
Current Rating (Amps) 980 mA
Current - Saturation (Isat) 1.2A
Shielding Semi-Shielded
DC Resistance (DCR) 410mOhm
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRN8040TA
Other Names SRN8040TA-151MDKR,SRN8040TA-151MTR,SRN8040TA-151MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274261-SRN8040TA-151M
Ultra Librarian 3D Model Ultra Librarian SRN8040TA-151M CAD Model

Description

The SRN8040TA series inductor is a high-quality fixed inductor designed for use in a wide range of electronic devices.

  • Inductance: 150 µH
  • Tolerance: ±20%
  • Q factor: 10 @ 1MHz
  • Package: Semi-shielded
  • Installation: Surface mount
  • DC Resistance: 410mOhm
  • Current Rating: 980 mA
  • Temperature Range: -55°C to 125°C
  • AEC-Q200: Rated
  • Standard Package: 1,000 units
  • Height when seated: 0.177" (4.50mm)
