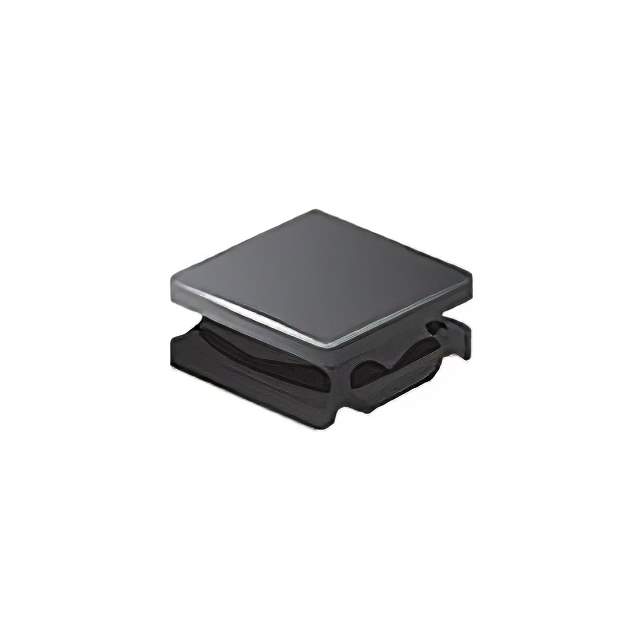

Same model may have multiple batches, images only for reference.

SRN4018-330M

Name: SRN4018-330M
Brand: Bourns Inc.
SKU: 1274342
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRN4018-330M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRN4018-330M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRN4018
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	700 mA
Current - Saturation (Isat)	750mA
Shielding	Semi-Shielded
DC Resistance (DCR)	552mOhm Max
Q @ Freq	11 @ 2.52MHz
Frequency - Self Resonant	12MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.071" (1.80mm)
Base Product Number	SRN4018
Other Names	SRN4018-330MCT,SRN4018330M,SRN4018-330MDKR,SRN4018-330MTR
Standard Package	3,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274342-SRN4018-330M
Ultra Librarian 3D Model	Ultra Librarian SRN4018-330M CAD Model

Alternative Products

Description

The Bourns Inc. SRN4018-330M is a semi-shielded drum core, wirewound inductor.

Inductance: 33 µH
Tolerance: ±20%
Q @ Freq: 11 @ 2.52MHz
Frequency Self-Resonant: 12MHz
DC Resistance (DCR): 552mOhm Max
Current Rating (Amps): 700 mA
Applications: Fixed Inductors
Package: Nonstandard
Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
REACH: Unaffected
