Same model may have multiple batches, images only for reference.

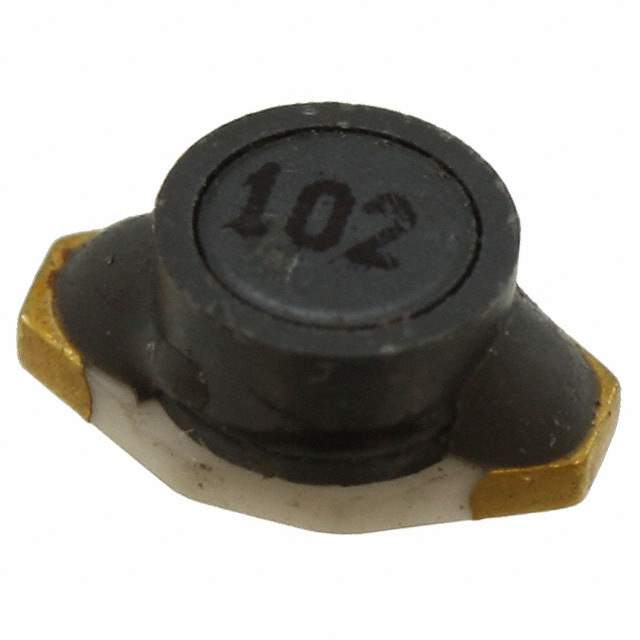

SRE6603-221M Real Image
Same model may have multiple batches, images only for reference.

SRE6603-221M

Part No SRE6603-221M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRE6603-221M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRE6603
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 220 mA
Current - Saturation (Isat) 100mA
Shielding Shielded
DC Resistance (DCR) 770mOhm Max
Q @ Freq 40 @ 100kHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
Base Product Number SRE6603
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274459-SRE6603-221M
Ultra Librarian 3D Model Ultra Librarian SRE6603-221M CAD Model

Description

The Bourns Inc. SRE6603-221M is a fixed inductor that is designed for use in various electronic applications.

  • Shielding: Yes
  • Inductance: 220 µH
  • Tolerance: ±20%
  • Frequency @ Self-Resonant: 6MHz
  • DC Resistance (DCR): 770mOhm max
  • Operating Temperature Range: -25°C to 105°C
  • Dimension: 0.260" L x 0.175" W (6.60mm x 4.45mm)
