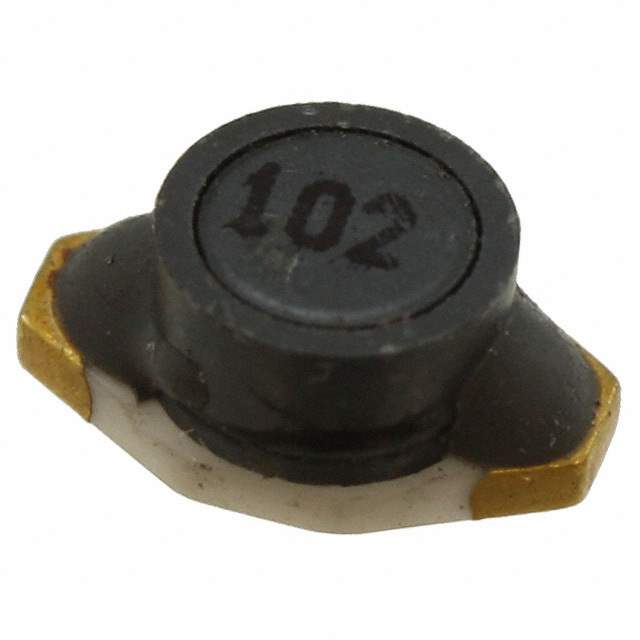

SRE6603-103M Real Image
Same model may have multiple batches, images only for reference.

SRE6603-103M

Part No SRE6603-103M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRE6603-103M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRE6603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 mH
Tolerance ±20%
Current Rating (Amps) 20 mA
Current - Saturation (Isat) 17mA
Shielding Shielded
DC Resistance (DCR) 32.8Ohm Max
Q @ Freq 50 @ 100kHz
Frequency - Self Resonant 800kHz
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
Base Product Number SRE6603
Other Names SRE6603-103MDKR,SRE6603-103M,SRE6603-103MTR,SRE6603-103MCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274472-SRE6603-103M
Ultra Librarian 3D Model Ultra Librarian SRE6603-103M CAD Model

Description

The SRE6603-103M is a drum core, wirewound inductor from Bourns Inc.

  • Manufacturer: Bourns Inc.
  • Type: drum core, wirewound inductor
  • Shielding: Shielded
  • Core Material: ferrite
  • Inductance: 10 mH
  • Tolerance: ±20%
  • DC resistance (DCR): 32.8Ohm Max
  • Current Rating: 20mA
  • Q @ Freq: 50 @ 100kHz
  • Frequency Self-Resonant: 800kHz
  • Package/Case: Non-standard with a dimension of 0.260" L x 0.175" W (6.60mm x 4.45mm)
  • Operating Temperature: -25°C to 105°C
