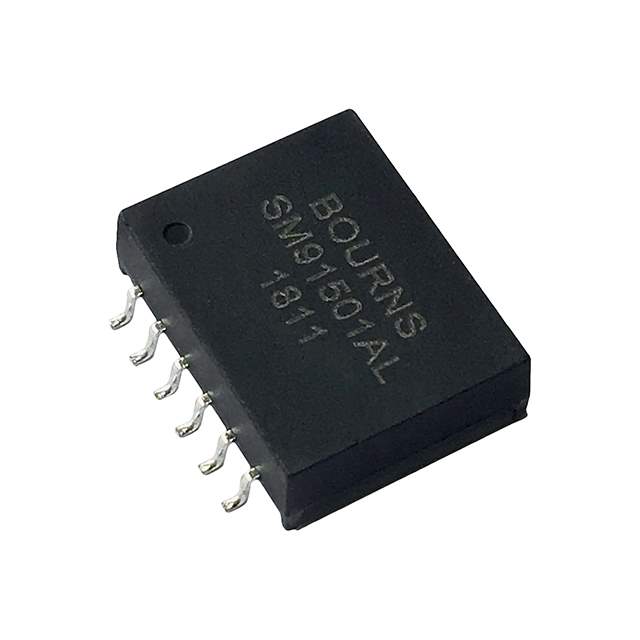

SM91501AL-E Real Image
Same model may have multiple batches, images only for reference.

SM91501AL-E

Part No SM91501AL-E
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description BMS XFORMER 2-CH 1600V AECQ +125 / 150µH Pulse Transformer 1CT:1CT Surface Mount
Datasheet
SM91501AL-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series Automotive, AEC-Q200, SM
Package Tape & Reel
Inductance 150µH
Mounting SMD (SMT)
Dimension 0.583" L x 0.460" W (14.81mm x 11.68mm)
Height - Seated (Max) 0.197" (5.00mm)
Temperature Range - Operating -40°C ~ 125°C
Base Product Number SM9150
Other Names SM91501ALETR,118-SM91501AL-ECT,SM91501ALEDKR,SM91501ALECT,SM91501ALE,118-SM91501AL-ETR,SM91501ALECT,SM91501ALEDKR,SM91501ALETR,118-SM91501AL-EDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232763-SM91501AL-E
Ultra Librarian 3D Model Ultra Librarian SM91501AL-E CAD Model

Description

Bourns Inc. presents the SM91501AL-E pulse transformer, which is a part of the Automotive, AEC-Q200, SM series.

  • Series: Automotive, AEC-Q200, SM series
  • Package: Tape & Reel
  • Inductance: 150µH
  • Height: 0.197" (5.00mm)
  • Standard Package: 400 units
  • Mounting: SMD (SMT)
  • Operating Temperature Range: -40°C to 125°C
  • Dimension: 0.583" L x 0.460" W (14.81mm x 11.68mm)
  • ECCN: EAR99
  • REACH: Unaffected
