Same model may have multiple batches, images only for reference.

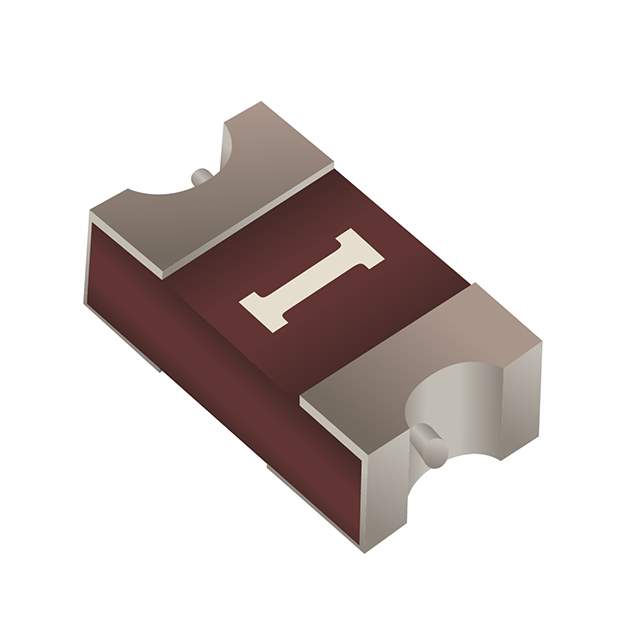

SF-1206S160W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S160W-2

Part No SF-1206S160W-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S160W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxW
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.6 A
Voltage Rating - DC 65 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric), Concave
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.52
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm)
DC Cold Resistance 0.043 Ohms
Base Product Number SF-1206
Other Names SF-1206S160W-2DKR,SF-1206S160W-2CT,SF-1206S160W-2TR
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302038-SF-1206S160W-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S160W-2 CAD Model

Description

The Bourns Inc. SinglFuse SF-1206SxxxW series is a board mount (cartridge style excluded) fuse type with a voltage rating of 65 V DC. It has a slow blow response time and a breaking capacity @ rated voltage of 50A.

  • Voltage Rating: 65 V DC
  • Response Time: Slow blow
  • Breaking Capacity @ rated voltage: 50A
  • Melting I2t: 0.52
  • DC Cold Resistance: 0.043 Ohms
  • Package: Tape and reel
  • Standard Package: 3,500
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.10.0040
  • Approval: UL
