Same model may have multiple batches, images only for reference.

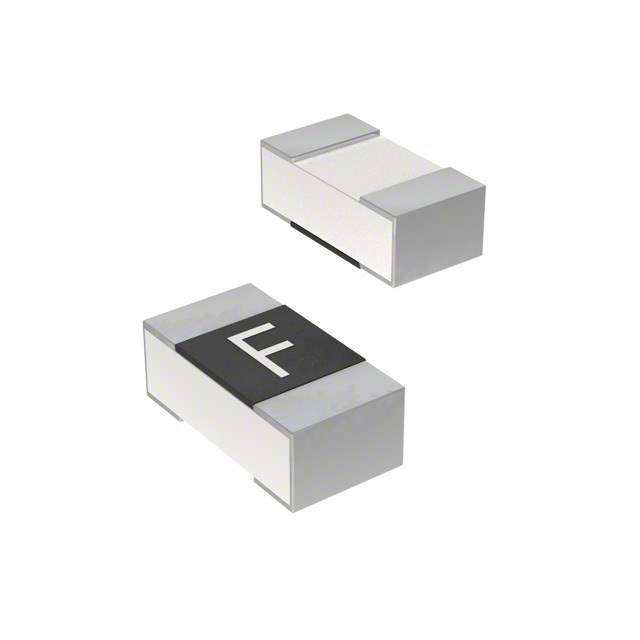

SF-0402F315-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402F315-2

Part No SF-0402F315-2
Manufacturer Bourns Inc.
Catalog Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402F
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.15 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.06304
Approval Agency UL
Temperature Range - Operating -20°C ~ 105°C
Dimension 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
DC Cold Resistance 0.019 Ohms
Base Product Number SF-0402
Other Names SF-0402F315-2TR,SF-0402F315-2,SF-0402F315-2DKR,SF-0402F315-2CT,118-SF-0402F315-2DKR,118-SF-0402F315-2TR,SF-0402F315-2TR,SF-0402F315-2CT,SF-0402F315-2DKR,118-SF-0402F315-2CT
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302202-SF-0402F315-2
Ultra Librarian 3D Model Ultra Librarian SF-0402F315-2 CAD Model

Description

The SF-0402F315-2 is a fast-blow fuse manufactured by Bourns Inc.

  • Mounting: surface mount
  • Voltage Rating: 32V
  • Current Rating: 3.15A
  • Breaking Capacity: 35A
  • DC Cold Resistance: 0.019 Ohms
  • MSL Level: 1
  • HTSUS: 8536.10.0040
