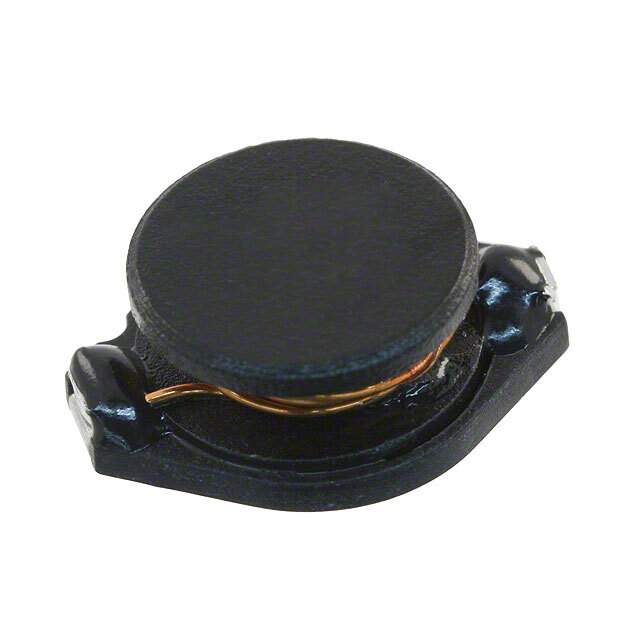

Same model may have multiple batches, images only for reference.

SDR1806-470ML

Name: SDR1806-470ML
Brand: Bourns Inc.
SKU: 1274554
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SDR1806-470ML
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDR1806-470ML Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR1806
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±20%
Current Rating (Amps)	2.5 A
Current - Saturation (Isat)	4.6A
Shielding	Unshielded
DC Resistance (DCR)	95mOhm Max
Q @ Freq	22 @ 2.52MHz
Frequency - Self Resonant	9MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max)	0.272" (6.90mm)
Base Product Number	SDR1806
Other Names	-SDR1806-470MLCT,SDR1806-470MLCT,SDR1806-470MLTR,SDR1806-470ML,-SDR1806-470ML,SDR1806470ML,-SDR1806-470ML,-SDR1806-470MLTR
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274554-SDR1806-470ML
Ultra Librarian 3D Model	Ultra Librarian SDR1806-470ML CAD Model

Alternative Products

Description

The Bourns Inc. 1274554-SDR1806-470ML is a fixed inductor that is used in a variety of applications.

Series: SDR1806 series
Type: Drum core, wirewound
Package: Tape and reel (TR) or cut tape (CT)
Shielding: Unshielded
Inductance: 47µH
Tolerance: ±20%
Core Material: Ferrite
Q @ Freq: 22 @ 2.52MHz
Frequency Self-Resonant: 9MHz
Package/Case: Nonstandard
DC Resistance (DCR): 95mOhm Max
Supplier Device Package: Not specified
Temperature Range: -40°C to 125°C
ECCN: EAR99
