Same model may have multiple batches, images only for reference.

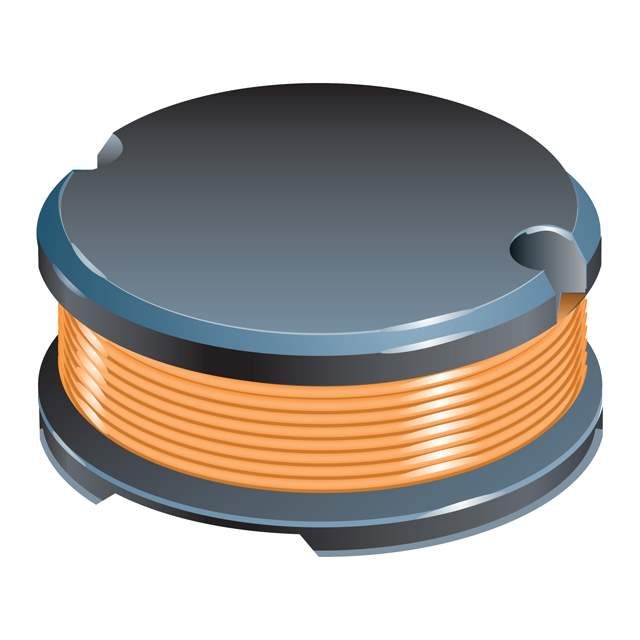

SDR1307A-6R8M Real Image
Same model may have multiple batches, images only for reference.

SDR1307A-6R8M

Part No SDR1307A-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307A-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 10.5A
Shielding Unshielded
DC Resistance (DCR) 17mOhm Max
Q @ Freq 24 @ 7.96MHz
Frequency - Self Resonant 26MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names SDR1307A-6R8MTR,SDR1307A-6R8M,SDR1307A-6R8MDKR,SDR1307A-6R8MCT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274563-SDR1307A-6R8M
Ultra Librarian 3D Model Ultra Librarian SDR1307A-6R8M CAD Model

Description

The Bourns Inc. SDR1307A-6R8M is a drum core, wirewound inductor that belongs to the fixed inductors category.

  • Shielding: Unshielded
  • Package: Tape and reel
  • Inductance: 6.8μH
  • Tolerance: ±20%
  • Q @ Freq: 24 @ 7.96MHz
  • DC Resistance (DCR): 17mOhm Max
  • Current Rating: 6A
  • Rating: AEC-Q200
  • Temperature Range: -40°C to 125°C
  • Core Material: Ferrite
  • Frequency of Self-Resonant: 26MHz
  • Series: SDR1307A-6R8MTR
  • Package: Non-standard
  • Mounting Technology: SMD (SMT) technology
  • REACH: Unaffected
  • HTSUS code: 8504.50.4000
  • MSL Level: 1 (Unlimited)
  • Inductance Frequency Test: 100 kHz
