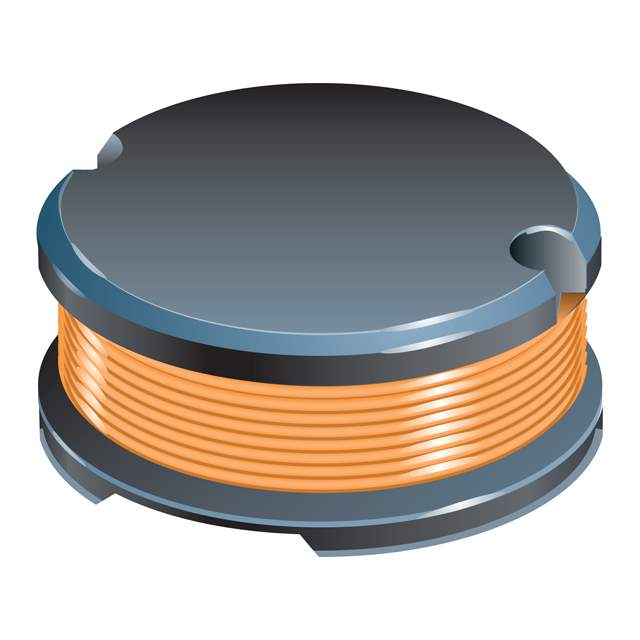

SDR1307A-151K Real Image
Same model may have multiple batches, images only for reference.

SDR1307A-151K

Part No SDR1307A-151K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307A-151K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 2.6A
Shielding Unshielded
DC Resistance (DCR) 250mOhm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 4.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names SDR1307A-151KTR,SDR1307A-151K,SDR1307A-151KCT,SDR1307A-151KDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274576-SDR1307A-151K
Ultra Librarian 3D Model Ultra Librarian SDR1307A-151K CAD Model

Description

The Bourns Inc. SDR1307A-151K is a drum core, wirewound inductor with a ferrite core material.

  • Shielding: Unshielded
  • Tolerance: ±10%
  • Standard Package: 400
  • Height: 0.287 inches (7.30mm) when seated
  • Inductance: 150 µH
  • Q @ Freq: 20 @ 796kHz
  • Current Rating: 1.6A
  • DC Resistance (DCR): 250mOhm Max
  • Frequency of Self-Resonant: 4.5MHz
  • Rating: AEC-Q200
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT) mounting
  • Applications: Inductors, Coils, Chokes > Fixed Inductors applications
