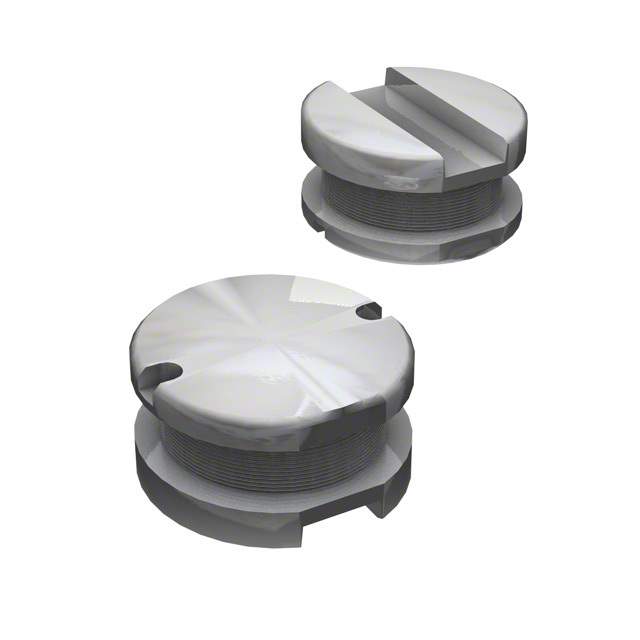

SDR1307-221ML Real Image
Same model may have multiple batches, images only for reference.

SDR1307-221ML

Part No SDR1307-221ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307-221ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 2.1A
Shielding Unshielded
DC Resistance (DCR) 360mOhm Max
Q @ Freq 15 @ 796kHz
Frequency - Self Resonant 3.8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274583-SDR1307-221ML
Ultra Librarian 3D Model Ultra Librarian SDR1307-221ML CAD Model

Description

The SDR1307-221ML is an unshielded drum core wirewound inductor from Bourns Inc.

  • Inductance: 220 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 360mOhm Max
  • Current Rating: 1.3 A
  • Q @ Freq: 15 @ 796kHz
  • Frequency of Self-Resonant: 3.8MHz
  • Package/Case: Non-standard
  • Mounting: SMD (SMT) technology
  • Core Material: Ferrite
  • Temperature Range: -40℃ to 125℃
  • Dimension: 0.512'' L x 0.512'' W (13.00mm x 13.00mm)
