Same model may have multiple batches, images only for reference.

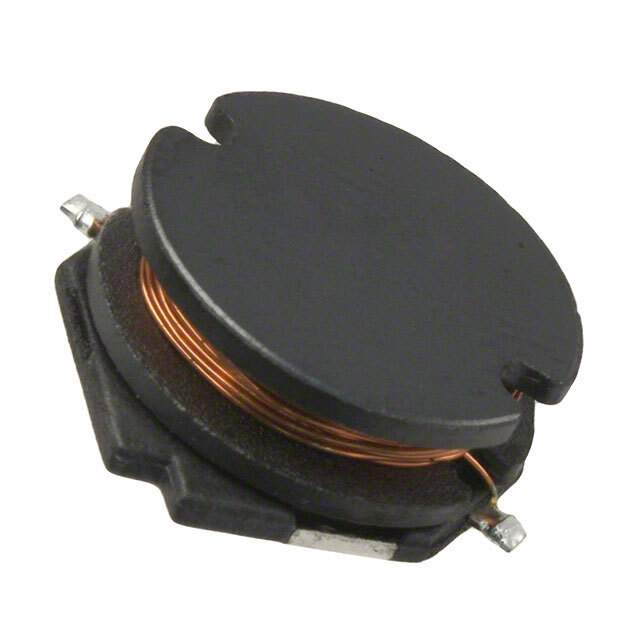

SDR1305-681K Real Image
Same model may have multiple batches, images only for reference.

SDR1305-681K

Part No SDR1305-681K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1305-681K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1305
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 580mA
Shielding Unshielded
DC Resistance (DCR) 1.4Ohm Max
Q @ Freq 12 @ 796kHz
Frequency - Self Resonant 3.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SDR1305
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274592-SDR1305-681K
Ultra Librarian 3D Model Ultra Librarian SDR1305-681K CAD Model

Description

The SDR1305-681K is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: Unshielded
  • Core Material: Ferrite
  • Inductance: 680 µH
  • Tolerance: ±10%
  • DC Resistance: 1.4Ohm Max
  • Current Rating: 600 mA
  • Q @ Freq: 12 @ 796kHz
  • Frequency - Self-Resonant: 3.5MHz
  • Package/Case: Nonstandard
  • Packaging: Tape & reel
  • Applications: Power supplies, DC-DC converters, and other applications where high current and low DCR are required.
