Same model may have multiple batches, images only for reference.

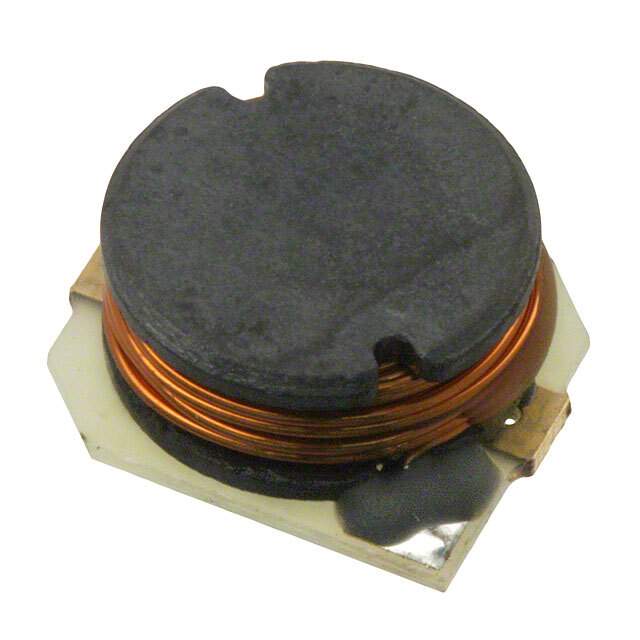

SDR1105-680KL Real Image
Same model may have multiple batches, images only for reference.

SDR1105-680KL

Part No SDR1105-680KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1105-680KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1105
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±10%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 3.5A
Shielding Unshielded
DC Resistance (DCR) 210mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SDR1105
Other Names SDR1105-680KL,118-SDR1105-680KLCT,118-SDR1105-680KLDKR,118-SDR1105-680KLTR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274607-SDR1105-680KL
Ultra Librarian 3D Model Ultra Librarian SDR1105-680KL CAD Model

Description

The SDR1105-680KL is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: Unshielded
  • Package/Case: Non-standard
  • Inductance: 68 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 210 mOhm max
  • Current Rating: 1.8 A
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.437” L x 0.394” W (11.10mm x 10.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Series: SDR1105
  • Base Product Number: SDR1105
  • Applications: Power supplies, DC/DC converters, and filtering circuits
  • AEC-Q200 Ratings: Yes
