Same model may have multiple batches, images only for reference.

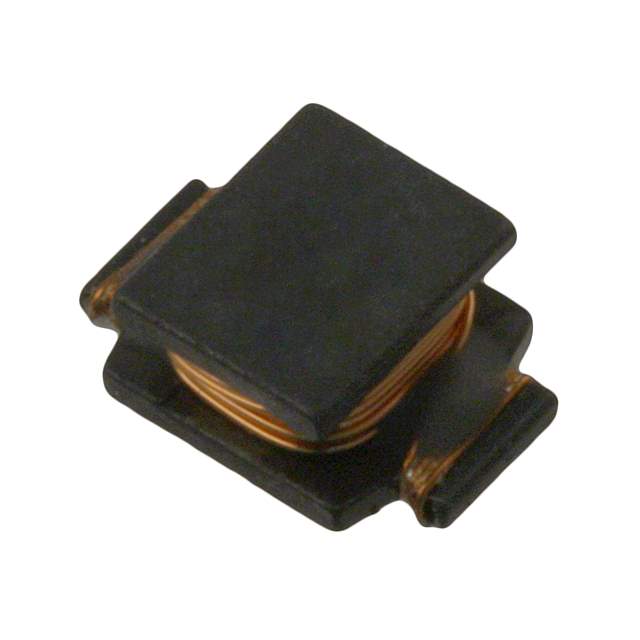

SDR0703-8R2M Real Image
Same model may have multiple batches, images only for reference.

SDR0703-8R2M

Part No SDR0703-8R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0703-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.5A
Shielding Unshielded
DC Resistance (DCR) 150mOhm Max
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274719-SDR0703-8R2M
Ultra Librarian 3D Model Ultra Librarian SDR0703-8R2M CAD Model

Description

The Bourns Inc. inductor is a fixed inductor that falls under the Inductors, Coils, Chokes category.

  • Series: SDR0703
  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Inductance: 8.2 µH
  • Tolerance: ±20%
  • Q @ Freq: 20 @ 7.96MHz
  • Frequency Self-Resonant: 40MHz
  • Mounting: Surface mountable
  • Package: Tape & reel
  • Win Source Part Number: 1274719-SDR0703-8R2M
