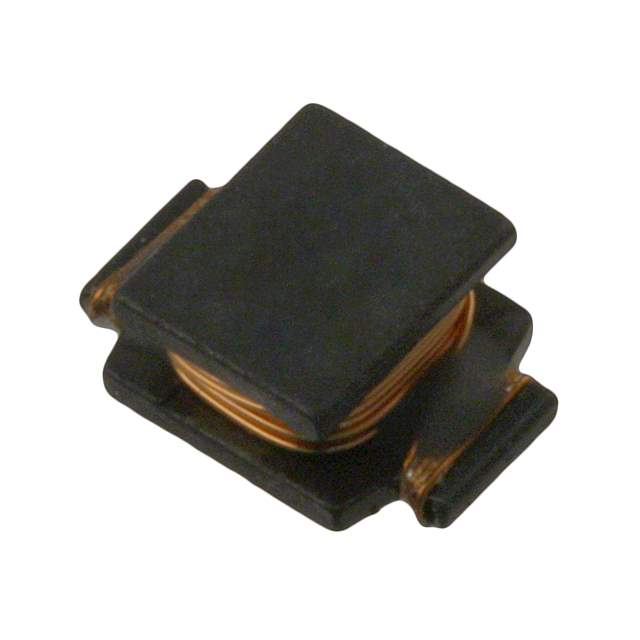

SDR0703-221ML Real Image
Same model may have multiple batches, images only for reference.

SDR0703-221ML

Part No SDR0703-221ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0703-221ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 180 mA
Current - Saturation (Isat) 280mA
Shielding Unshielded
DC Resistance (DCR) 3Ohm Max
Q @ Freq 31 @ 796kHz
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274727-SDR0703-221ML
Ultra Librarian 3D Model Ultra Librarian SDR0703-221ML CAD Model

Description

The SDR0703 series inductors from Bourns Inc. are designed for use in a wide range of electronic applications.

  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Inductance: 220 µH
  • Tolerance: ±20%
  • Maximum Current: 180 mA
  • DC Resistance: 3 Ohm max
  • Q @ Freq: 31 @ 796kHz
  • Frequency Self-Resonant: 7MHz
  • Temperature Range: -40°C to 125°C
  • Package/Case: Nonstandard
  • Packaging: Tape and reel
  • Standard Package: 500
