Same model may have multiple batches, images only for reference.

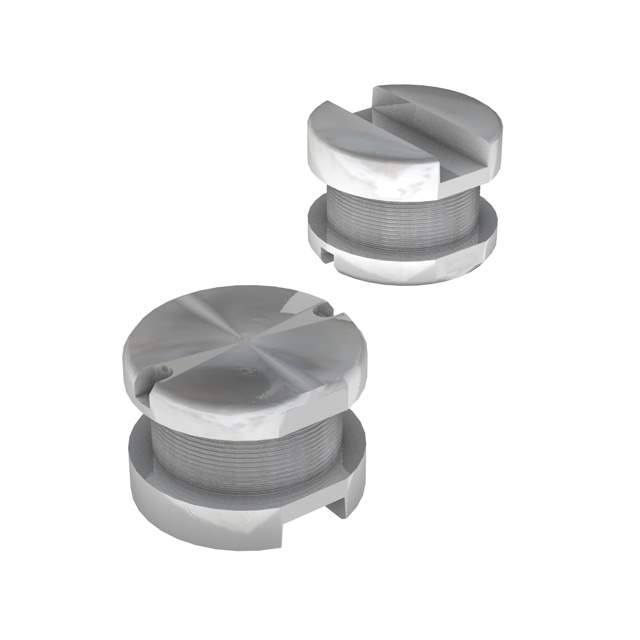

SDR0403-181KL Real Image
Same model may have multiple batches, images only for reference.

SDR0403-181KL

Part No SDR0403-181KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0403-181KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0403
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 180 µH
Tolerance ±10%
Current Rating (Amps) 240 mA
Current - Saturation (Isat) 390mA
Shielding Unshielded
DC Resistance (DCR) 3.9Ohm Max
Q @ Freq 50 @ 796kHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SDR0403
Other Names SDR0403-181KLDKR,SDR0403-181KL,SDR0403-181KLCT,SDR0403-181KLTR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274834-SDR0403-181KL
Ultra Librarian 3D Model Ultra Librarian SDR0403-181KL CAD Model

Description

The Bourns Inc. SDR0403-181KL inductor is a drum core, wirewound type of inductor.

  • Shielding: Unshielded
  • Inductance: 180 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 50 @ 796kHz
  • Temperature Range: -40°C to 125°C
  • DC Resistance (DCR): 3.9Ohm Max
  • Current Rating: 240 mA
  • Inductance Frequency-Test: 1 kHz
  • Frequency-Self Resonant: 5MHz
  • Package/Case: Non-standard
  • Dimension: 0.177" L x 0.157" W (4.50mm x 4.00mm)
