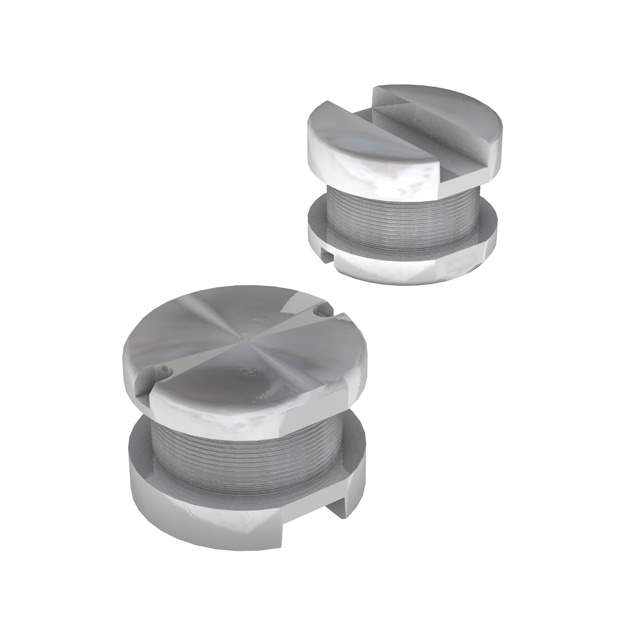

SDR0403-151KL Real Image
Same model may have multiple batches, images only for reference.

SDR0403-151KL

Part No SDR0403-151KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0403-151KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0403
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 260 mA
Current - Saturation (Isat) 400mA
Shielding Unshielded
DC Resistance (DCR) 3.4Ohm Max
Q @ Freq 50 @ 796kHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SDR0403
Other Names SDR0403-151KLDKR,SDR0403-151KLCT,SDR0403-151KLTR,SDR0403-151KL
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274836-SDR0403-151KL
Ultra Librarian 3D Model Ultra Librarian SDR0403-151KL CAD Model

Description

The Bourns Inc. SDR0403 series fixed inductor is a drum core, wirewound component with a tape and reel package.

  • Inductance: 150 microhenries
  • Tolerance: ±10 percent
  • Height: 0.138 inches
  • Dimension: 0.177 inches L x 0.157 inches W
  • DC Resistance: 3.4 ohm max
  • Current Rating: 260 mA
  • Inductance Frequency Test: 1 kHz
  • Temperature Range: -40°C to 125°C
