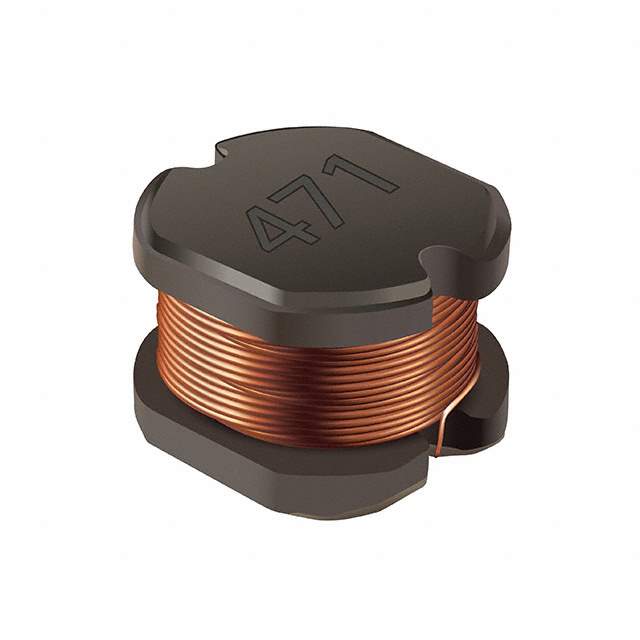

Same model may have multiple batches, images only for reference.

SDE0805A-6R8M

Name: SDE0805A-6R8M
Brand: Bourns Inc.
SKU: 1274892
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDE0805A-6R8M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDE0805A-6R8M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDE0805A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	6.8 µH
Tolerance	±20%
Current Rating (Amps)	3.8 A
Current - Saturation (Isat)	3.2A
Shielding	Unshielded
DC Resistance (DCR)	48mOhm Max
Frequency - Self Resonant	32MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)	0.217" (5.50mm)
Base Product Number	SDE0805A
Other Names	SDE0805A-6R8MTR,SDE0805A-6R8MCT,SDE0805A-6R8MDKR
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274892-SDE0805A-6R8M
Ultra Librarian 3D Model	Ultra Librarian SDE0805A-6R8M CAD Model

Alternative Products

Description

The Bourns SDE0805A series inductors are a drum core, wirewound type of fixed inductors.

Shielding: Unshielded
Inductance: 6.8 µH
Tolerance: ±20%
Core Material: Ferrite
Frequency - Self Resonant: 32MHz
DC Resistance (DCR): 48mOhm Max
Current Rating: 3.8 A
Height - Seated (Max): 0.217" (5.50mm)
Package Type: Tape & Reel
Mounting Type: SMD (SMT)
Ratings: AEC-Q200
