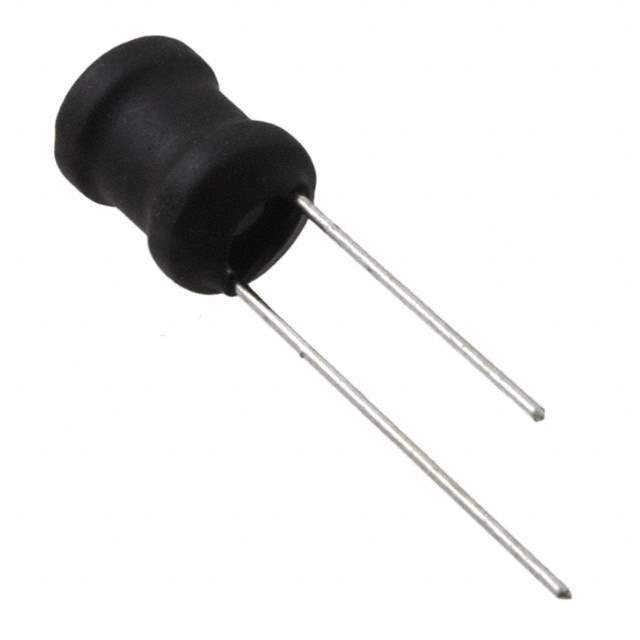

The RLB9012-822KL is a fixed inductor from Bourns designed for use in a wide range of electronic applications.

• Package: Radial, Vertical Cylinder
• Series: RLB9012
• Shielding: Unshielded
• Inductance: 8.2 mH
• Tolerance: ±10%
• Height - Seated (Max): 0.480" (12.20mm)
• Mounting: Through-Hole
• Q @ Freq: 15 @ 252kHz
• Frequency - Self-Resonant: 350kHz
• DC Resistance (DCR): 22.7Ohm Max
• Current Rating (Amps): 180 mA
• Operating Temperature Range: -55°C ~ 125°C
• REACH: Unaffected
• Quality: High-quality inductor that provides excellent performance and reliability
