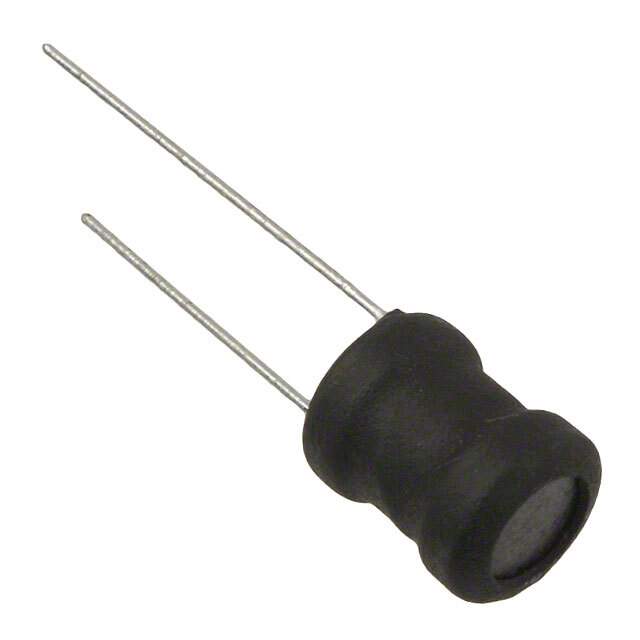

RLB0914-680KL Real Image
Same model may have multiple batches, images only for reference.

RLB0914-680KL

Part No RLB0914-680KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 68UH 1.33A 210 MOHM TH / 68 µH Unshielded Drum Core, Wirewound Inductor 1.33 A 210mOhm Max Radial, Vertical Cylinder
Datasheet
RLB0914-680KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±10%
Current Rating (Amps) 1.33 A
Current - Saturation (Isat) 2.7A
Shielding Unshielded
DC Resistance (DCR) 210mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 4.5MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 2.52 MHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.512" (13.00mm)
Base Product Number RLB0914
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number RLB0914680KL,-RLB0914-680KL
Standard Package 200
Win Source Part Number 1327807-RLB0914-680KL
Ultra Librarian 3D Model Ultra Librarian RLB0914-680KL CAD Model

Description

The RLB0914-680KL is a fixed inductor from Bourns Inc.

  • Type: Drum Core, Wirewound
  • Shielding: Unshielded
  • Inductance: 68 µH
  • Tolerance: ±10%
  • Current Rating: 1.33 A
  • DC Resistance (DCR): 210mOhm Max
  • Series: RLB0914
  • Package: Bulk
  • Diameter: 0.343" (8.70mm)
  • Height: 0.512" (13.00mm)
  • Package: Radial, Vertical Cylinder package
  • Operating Temperature Range: -40°C to 105°C
  • ECCN: EAR99 compliant
  • Failure Rate: 83%
  • ROHS3 Compliant: Yes
