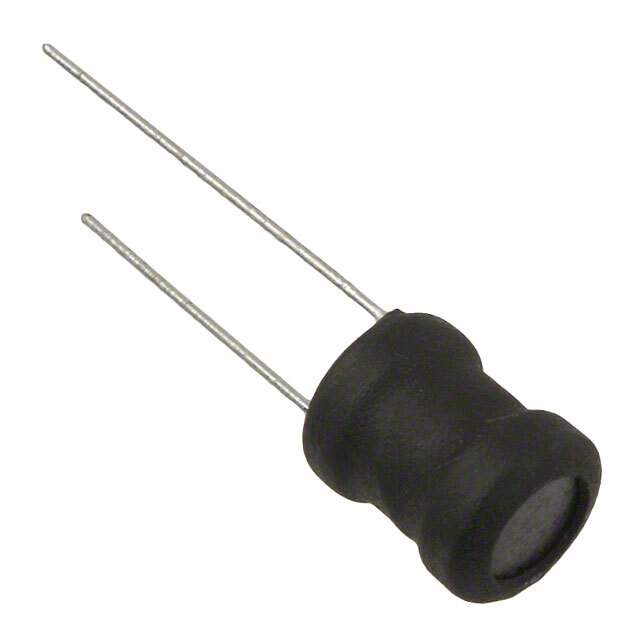

RLB0914-560KL Real Image
Same model may have multiple batches, images only for reference.

RLB0914-560KL

Part No RLB0914-560KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 56UH 1.5A 200 MOHM TH / 56 µH Unshielded Drum Core, Wirewound Inductor 1.5 A 200mOhm Max Radial, Vertical Cylinder
Datasheet
RLB0914-560KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±10%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 3A
Shielding Unshielded
DC Resistance (DCR) 200mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 2.52 MHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.512" (13.00mm)
Base Product Number RLB0914
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 200
Win Source Part Number 1327843-RLB0914-560KL
Ultra Librarian 3D Model Ultra Librarian RLB0914-560KL CAD Model

Description

The Bourns Inc. RLB0914-560KL inductor is an unshielded drum core, wirewound type with a ferrite core material.

  • Size: 0.343" Dia (8.70mm)
  • Inductance: 56 µH
  • Height: 0.512" (13.00mm) Max
  • Tolerance: ±10%
  • DC Resistance (DCR): 200mOhm Max
  • Current Rating: 1.5 A
  • Q @ Freq: 30 @ 2.52MHz
  • Frequency: 5MHz (self-resonant)
  • Operating Temperature: -40°C ~ 105°C
  • Mounting: Through-hole
  • Standard Package: 200
  • ROHS3 Compliant: Yes
