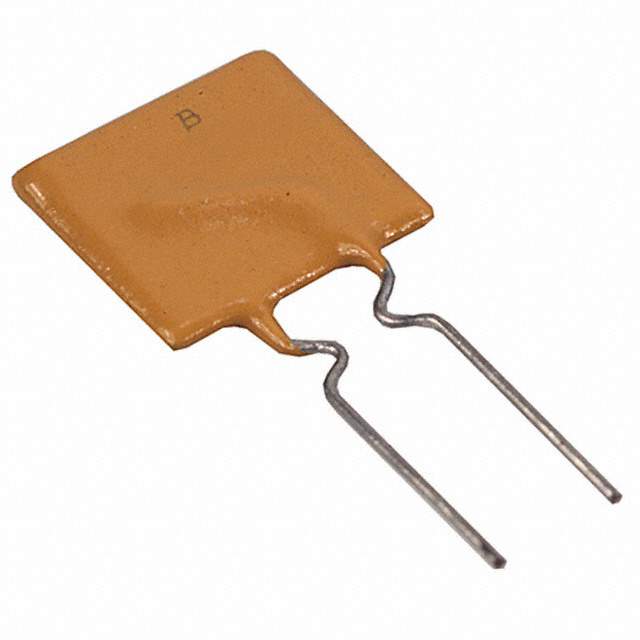

Same model may have multiple batches, images only for reference.

MF-R250-0-10

Name: MF-R250-0-10
Brand: Bourns Inc.
SKU: 1334907
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MF-R250-0-10
Manufacturer	Bourns Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 2.5A RADIAL / Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc
Datasheet	MF-R250-0-10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Manufacturer	Bourns Inc.
Packaging	Bulk
Type	Polymeric
Voltage - Max	30V
Current - Max	40 A
Current - Hold (Ih) (Max)	2.5 A
Current - Trip (It)	5 A
Time to Trip	10.3 s
Resistance - Initial (Ri) (Min)	25 mOhms
Resistance - Post Trip (R1) (Max)	70 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	Through Hole
Case / Package	Radial, Disc
Size / Dimension	0.472" L x 0.118" W (12.00mm x 3.00mm)
Height - Seated (Max)	0.720" (18.30mm)
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
Base Product Number	MF-R250
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Part Number	MFR250010
Standard Package	500
Win Source Part Number	1334907-MF-R250-0-10
Ultra Librarian 3D Model	Ultra Librarian MF-R250-0-10 CAD Model

Alternative Products

Description

The Bourns Inc. MF-R250 series is a polymeric type PTC resettable fuse with a radial, disc case/package.

Case / Package: Radial, Disc
Size / Dimension: 0.472" L x 0.118" W (12.00mm x 3.00mm)
Height: 0.720" (18.30mm)
Voltage - Max: 30V
Current - Max: 40 A
Current - Hold (Ih) (Max): 2.5 A
Current - Trip (It): 5 A
Time to Trip: 10.3 s
Resistance - Initial (Ri) (Min): 25 mOhms
Approval Agencies: cURus, TUV
