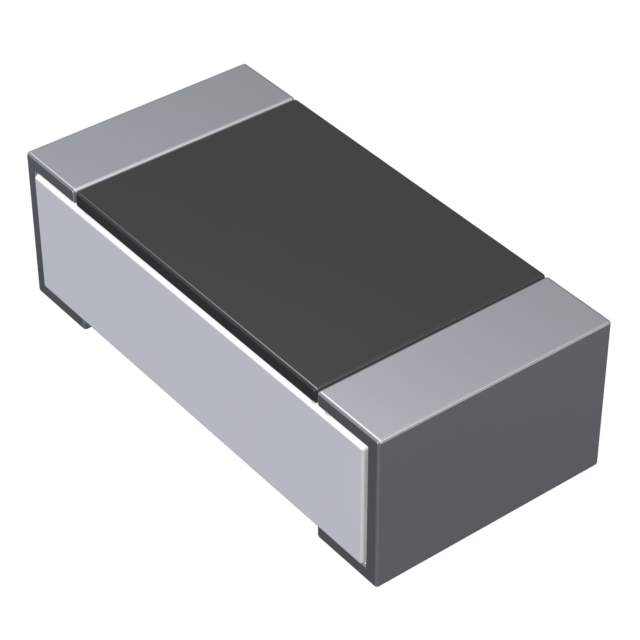

CR0603-FX-86R6ELF Real Image
Same model may have multiple batches, images only for reference.

CR0603-FX-86R6ELF

Part No CR0603-FX-86R6ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 86.6 OHM 1% 1/10W 0603 / 86.6 Ohms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Moisture Resistant Thick Film
Datasheet
CR0603-FX-86R6ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Packaging Reel - TR
Resistance 86.6 Ohms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Base Product Number CR0603
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 118-CR0603-FX-86R6ELFTR,118-CR0603-FX-86R6ELFCT,118-CR0603-FX-86R6ELFDKR,CR0603-FX-86R6ELF-ND
Standard Package 5,000
Win Source Part Number 1326144-CR0603-FX-86R6ELF
Ultra Librarian 3D Model Ultra Librarian CR0603-FX-86R6ELF CAD Model

Description

The CR0603-FX-86R6ELF is a chip resistor surface mount electronic component manufactured by Bourns Inc.

  • Resistance: 86.6 Ohms
  • Power Output: 0.1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Thick film
  • Terminations: Two
  • Standard Package: 5,000
  • Moisture Resistant: Yes
  • Size/Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height Seated (max): 0.022" (0.55mm)
  • Temperature Range: -55°C to 155°C
  • Case/Package: 0603 (1608 Metric)
