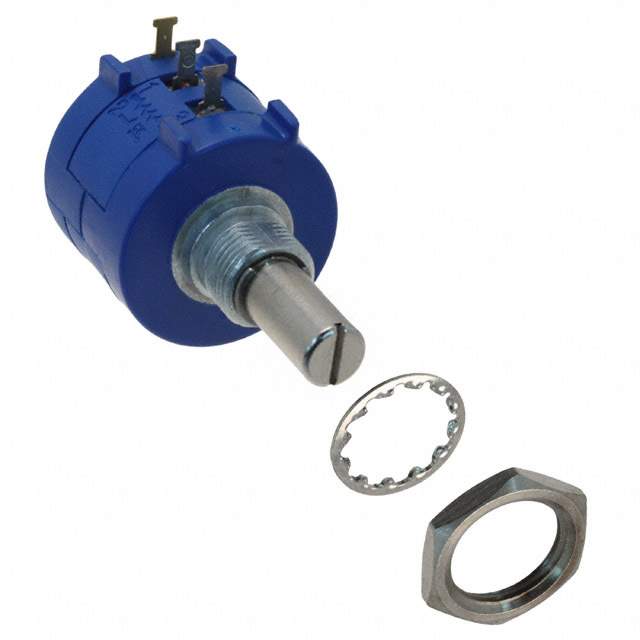

3590S-2-502 Real Image
Same model may have multiple batches, images only for reference.

3590S-2-502

Part No 3590S-2-502
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 5K OHM 2W WIREWOUND LINEAR / 5k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Lug
Datasheet
3590S-2-502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Manufacturer Bourns Inc.
Packaging Bulk
Product Status Obsolete
Resistance (Ohms) 5k
Tolerance ±5%
Power (Watts) 2W
Built in Switch None
Number of Turns 10
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±50ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm)
Bushing Thread 3/8-32
Mounting Panel Mount
Size - Body Round - 0.875" Dia (22.23mm)
Base Product Number 3590S
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.31.0000
Other Part Number Q1260609
Standard Package 5
Win Source Part Number 1329287-3590S-2-502
Ultra Librarian 3D Model Ultra Librarian 3590S-2-502 CAD Model

Description

The 3590S series rotary potentiometer is a panel mount component from Bourns Inc..

  • Mounting Type: Panel Mount
  • Package: Bulk
  • Resistance: 5k ohms
  • Tolerance: ±5 percent
  • Power Rating: 2W
  • Actuator Type: Slotted
  • Number of Turns: 10
  • Taper: Linear
  • Actuator Length: 0.812 inches
  • Actuator Diameter: 0.2497 inches
  • Body Size: Round with a diameter of 0.875 inches
