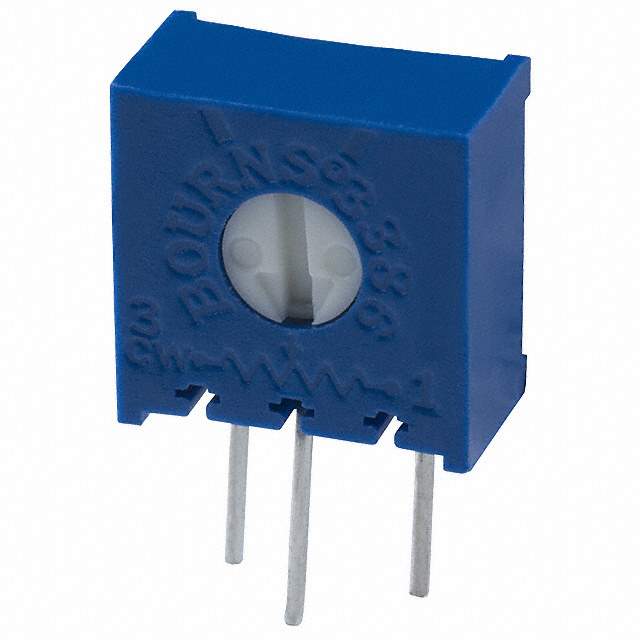

Same model may have multiple batches, images only for reference.

3386X-1-203LF

Name: 3386X-1-203LF
Brand: Bourns Inc.
SKU: 1329441
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3386X-1-203LF
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 20K OHM 0.5W PC PIN SIDE / 20 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
Datasheet	3386X-1-203LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer	Bourns Inc.
Packaging	Tube
Resistance	20 kOhms
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Side Adjustment
Resistive Material	Cermet
Mounting	Through Hole
Termination Style	PC Pins
Size / Dimension	Square - 0.375" x 0.375" Face (9.53mm x 9.53mm)
Base Product Number	3386X
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Part Number	3386X-1-203LF-ND,3386X-203LF,3386X1203LF
Standard Package	100
Win Source Part Number	1329441-3386X-1-203LF
Ultra Librarian 3D Model	Ultra Librarian 3386X-1-203LF CAD Model

Alternative Products

Description

The Bourns Inc. 1329441-3386X-1-203LF is a 0.5W, 1/2W square trimmer potentiometer with a resistance of 20 kOhms.

Power: 0.5W, 1/2W
Resistance: 20 kOhms
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Termination Style: PC Pins
Mounting: Through-Hole
Package Contains: 100 pieces
Compliance: RoHS3
Applications: Audio, Telecommunications, and Instrumentation
