Same model may have multiple batches, images only for reference.

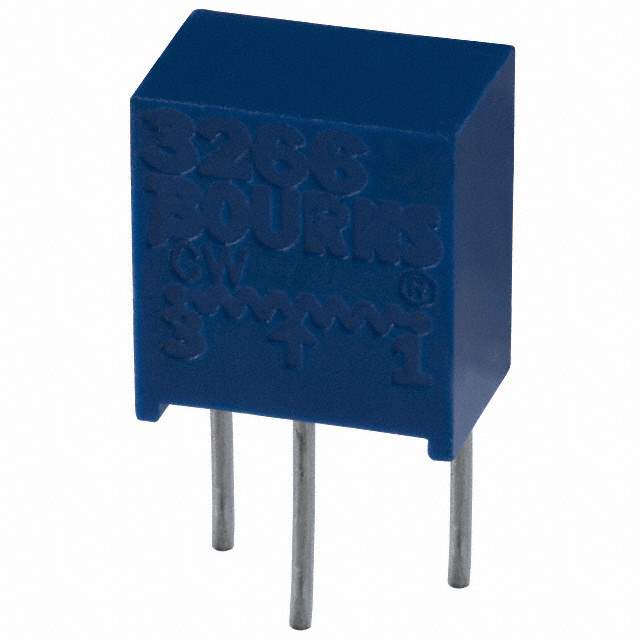

3266X-1-105 Real Image
Same model may have multiple batches, images only for reference.

3266X-1-105

Part No 3266X-1-105
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.25W PC PIN SIDE / 1 MOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
Datasheet
3266X-1-105 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Bourns Inc.
Packaging Tube
Resistance 1 mOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number 3266X
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number 3266X-105
Standard Package 100
Win Source Part Number 1325964-3266X-1-105
Ultra Librarian 3D Model Ultra Librarian 3266X-1-105 CAD Model

Description

The 3266X-1-105 is a trimmer potentiometer designed by Bourns Inc.

  • Shape: Rectangular
  • Size: 0.250" x 0.170" face (6.35mm x 4.32mm)
  • Power Rating: 0.25W, 1/4W
  • Number of Turns: 12
  • Adjustment Type: Side Adjustment
  • Tolerance: ±10%
  • Resistive Material: Cermet
  • Resistance: 1 mOhms
  • Temperature Coefficient: ±100ppm/℃
  • Termination Style: PC pins
  • Mounting: Through Hole
  • ECCN: EAR99
  • RoHS: Non-Compliant
