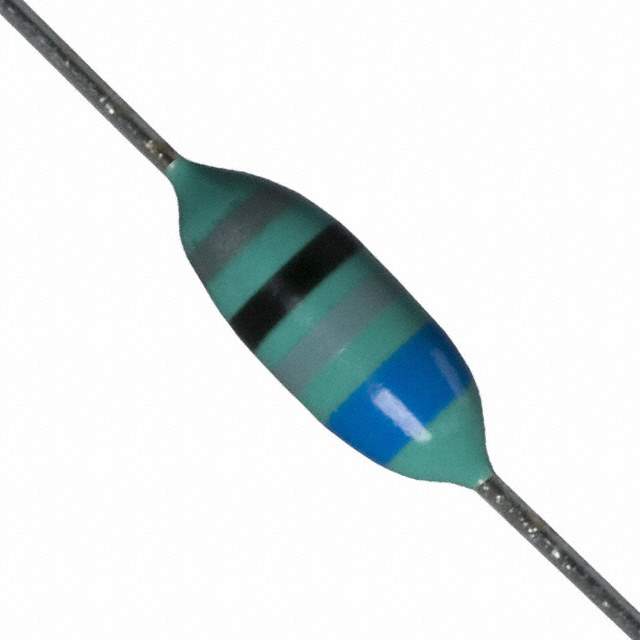

8230-64-RC Real Image
Same model may have multiple batches, images only for reference.

8230-64-RC

Part No 8230-64-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description Conformal Coated RF Choke | FIXED IND 68UH 135MA 6.7 OHM TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Bulk
Type Wirewound
Material - Core Ferrite
Inductance 68μH
Tolerance ±10%
Current Rating (Amps) 135mA
Shielding Unshielded
DC Resistance (DCR) 6.7Ohm Max
Q at Freq 50 at 2.5MHz
Frequency - Self Resonant 15MHz
Temperature Range - Operating -55°C ~ 105°C
Inductance Frequency - Test 2.5MHz
Mounting Style Through Hole
Manufacturer Package Axial
Supplier Device Package Axial
Parts Dimension 0.120" Dia x 0.300" L (3.05mm x 7.62mm)
Family Part Number 8230
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1133891-8230-64-RC
Manufacturer Homepage www.bourns.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 8230-64-RC CAD Model

Description

The 8230-64-RC by Bourns Inc. is a wirewound type inductor.

  • Inductance: 68μH
  • Tolerance: ±10%
  • Shielded: Yes
  • Mounting Style: Through-Hole
  • Core Material: Ferrite
  • Operating Temperature: -55°C to 105°C
  • DC Resistance (DCR): 6.7Ohm Max
  • Q @ Freq: 50 @ 2.5MHz
  • Current Rating (Amps): 135mA
  • Inductance Frequency - Test: 2.5MHz
