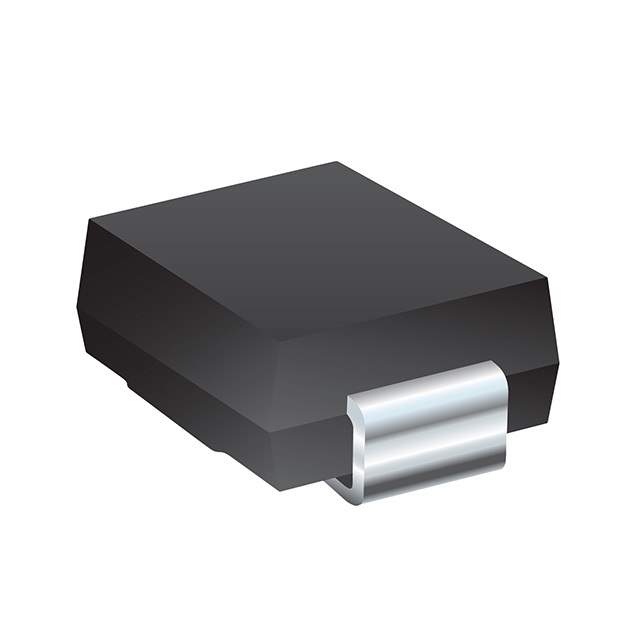

5.0SMDJ78CA

Part No 5.0SMDJ78CA
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description Transient Voltage Suppressors | DIO TVS VWM 78V 5KW BIDIR SMC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff 78V
Voltage - Breakdown (Minimum) 86.7V
Voltage - Clamping (Maximum) at Ipp 126V
Current - Peak Pulse (10/1000μs) 39.7A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Family Part Number 5.0SMDJ
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128905-5.0SMDJ78CA
Manufacturer Homepage www.rulion.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5.0SMDJ78CA CAD Model

Description

The Bourns Inc. 5.0SMDJ78CA is a high-quality zener diode that is widely used in various electronic devices.

  • Supply and Demand Status: Balance
  • Win Source Part Number: 1128905-5.0SMDJ78CA
  • Power Peak Pulse: 5000W
  • Voltage Breakdown: 86.7V
  • Channel: Bidirectional
  • Maximum Voltage Clamping: 126V
