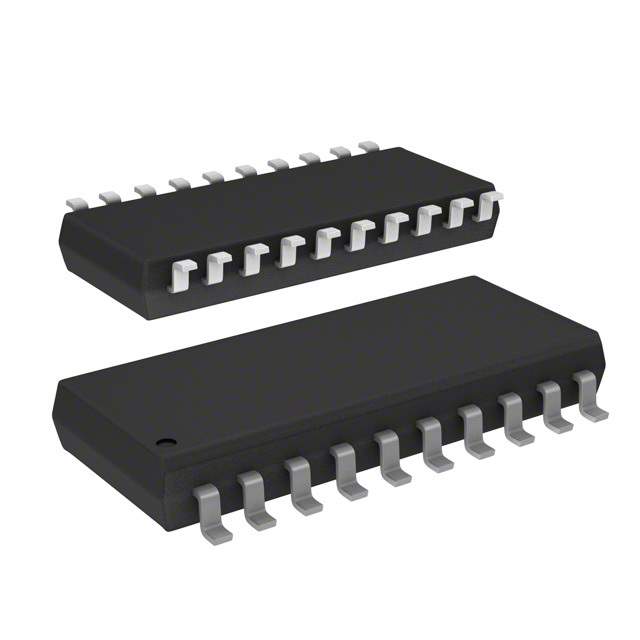

4820P-3-331/471LF Real Image
Same model may have multiple batches, images only for reference.

4820P-3-331/471LF

Part No 4820P-3-331/471LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES NTWRK 36 RES MULT OHM 20SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Circuit Type Dual Terminator
Resistance (Ohms) 330, 470
Tolerance ±2%
Number of Resistors 36
Number of Pins 20
Power Per Element 80mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Style SMD
Manufacturer Package 20-SOIC (0.220", 5.59mm Width)
Supplier Device Package 20-SOM
Dimension 0.540" L x 0.220" W (13.72mm x 5.59mm)
Height - Seated (Maximum) 0.094" (2.40mm)
Part Number Series 4820P
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807072-4820P-3-331/471LF
Ultra Librarian 3D Model Ultra Librarian 4820P-3-331/471LF CAD Model

Description

Bourns Inc. presents a Dual Terminator Circuit Type SMD Resistor.

  • Resistance: 330 and 470 Ohms
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Power Per Element: 80mW
  • Supplier Device Package: 20-SOM
  • Temperature Range: -55°C to 125°C
  • Number of Resistors: 36
  • Number of Pins: 20
  • Applications: Automotive AEC-Q200
  • Dimensions: 0.540" L x 0.220" W (13.72mm x 5.59mm), Height 0.094" (2.40mm)
  • Manufacturer Package: 20-SOIC (0.220", 5.59mm Width)
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (Unlimited)
  • Resistor Matching Ratio and Resistor-Ratio-Drift: -
