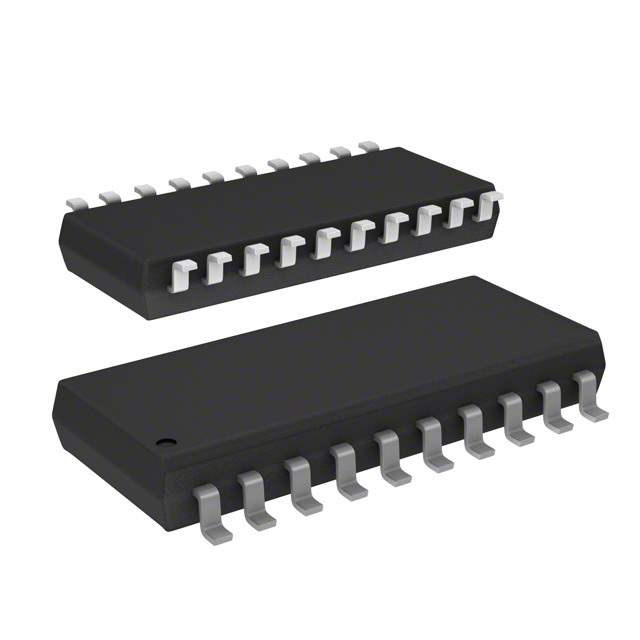

4820P-1-223LF Real Image
Same model may have multiple batches, images only for reference.

4820P-1-223LF

Part No 4820P-1-223LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 10 RES 22K OHM 20SOIC
Datasheet
4820P-1-223LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Circuit Type Isolated
Resistance (Ohms) 22k
Tolerance ±2%
Number of Resistors 10
Number of Pins 20
Power Per Element 160mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C to 125°C
Applications Automotive AEC-Q200
Mounting SMD (SMT)
Case / Package 20-SOM
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 075825-4820P-1-223LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4820P-1-223LF CAD Model

Description

Product Description for 4820P-1-223LF

The 4820P-1-223LF is engineered for high-performance applications with a focus on accuracy and resilience. Its innovative design ensures a seamless fit in various electronic setups, making it a preferred choice among technicians.

Features and Benefits

  • Enhanced accuracy for critical applications
  • Resilient against environmental factors
  • Compact design for efficient space usage

Applications

  • Electronic testing devices
  • Communication systems
  • Medical equipment
