Same model may have multiple batches, images only for reference.

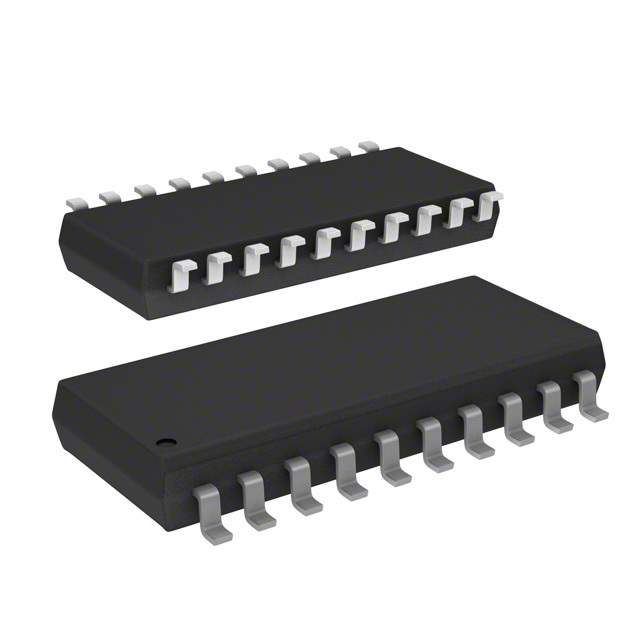

4820P-1-104LF Real Image
Same model may have multiple batches, images only for reference.

4820P-1-104LF

Part No 4820P-1-104LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 10 RES 100K OHM 20SOIC / 100k Ohm ±2% 160mW Power Per Element Isolated 10 Resistor Network/Array ±100ppm/°C 20-SOIC (0.220", 5.59mm Width)
Datasheet
4820P-1-104LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4800P
Package Tape & Reel (TR)
Circuit Type Isolated
Resistance (Ohms) 100k
Tolerance ±2%
Number of Resistors 10
Number of Pins 20
Power Per Element 160mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting SMD (SMT)
Package / Case 20-SOIC (0.220", 5.59mm Width)
Supplier Device Package 20-SOM
Dimension 0.540" L x 0.220" W (13.72mm x 5.59mm)
Height - Seated (Max) 0.094" (2.40mm)
Base Product Number 4820P
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.10.0057
Standard Package 2,000
Win Source Part Number 985285-4820P-1-104LF
Ultra Librarian 3D Model Ultra Librarian 4820P-1-104LF CAD Model

Description

The Bourns Inc. 4820P-1-104LF is a resistor network array.

  • Resistance: 100kΩ
  • Tolerance: ±2%
  • Power per Element: 160mW
  • Circuit Type: Isolated
  • Resistors: 10
  • Pins: 20
  • Mounting: SMD (SMT)
  • Package: 20-SOIC (0.220”, 5.59mm Width)
  • Operating Temperature: -55°C ~ 125°C
  • AEC-Q200: Rated
  • ECCN: EAR99
  • REACH: Affected
  • Application: Automotive
