Same model may have multiple batches, images only for reference.

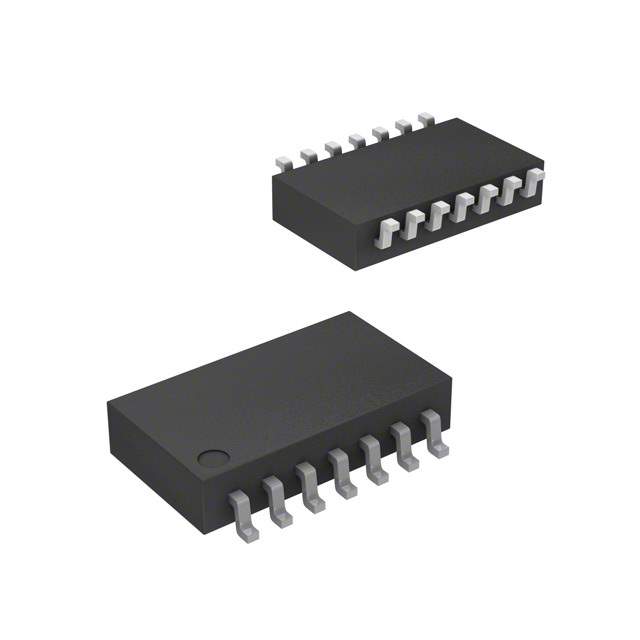

4814P-T01-103LF Real Image
Same model may have multiple batches, images only for reference.

4814P-T01-103LF

Part No 4814P-T01-103LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 7 RES 10K OHM 14SOIC / 10k Ohm ±2% 160mW Power Per Element Isolated 7 Resistor Network/Array ±100ppm/°C 14-SOIC (0.220", 5.59mm Width)
Datasheet
4814P-T01-103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4800P
Package Tube
Circuit Type Isolated
Resistance (Ohms) 10k
Tolerance ±2%
Number of Resistors 7
Number of Pins 14
Power Per Element 160mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting SMD (SMT)
Package / Case 14-SOIC (0.220", 5.59mm Width)
Supplier Device Package 14-SOM
Dimension 0.390" L x 0.220" W (9.91mm x 5.59mm)
Height - Seated (Max) 0.094" (2.40mm)
Base Product Number 4814P
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0010
Other Names 4814PT01103LF
Standard Package 50
Win Source Part Number 1038822-4814P-T01-103LF
Ultra Librarian 3D Model Ultra Librarian 4814P-T01-103LF CAD Model

Description

The 4814P-T01-103LF from Bourns Inc. is a resistor network designed for various applications such as automotive AEC-Q200.

  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 10k ohms
  • Power per Element: 160mW
  • Circuit Type: Isolated
  • Resistors: 7
  • Pins: 14
  • Height: 0.094 inches
  • Dimension: 0.390 inches length x 0.220 inches width
  • Package: Tube
  • Standard Package: 50
