Same model may have multiple batches, images only for reference.

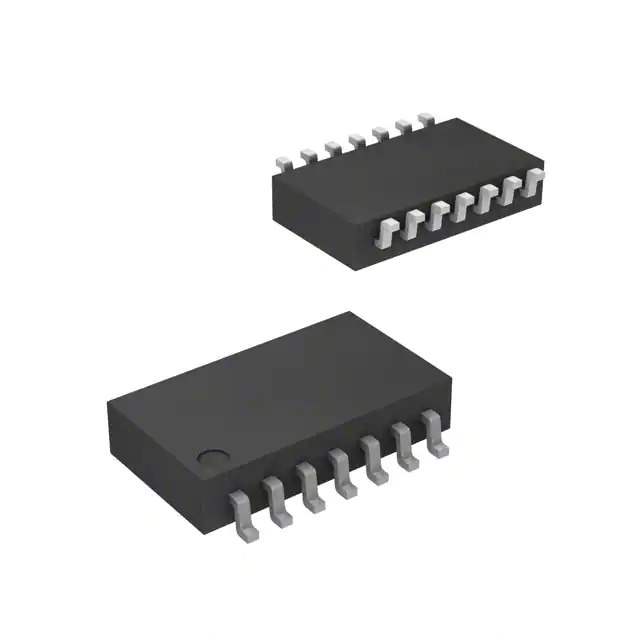

4814P-2-103 Real Image
Same model may have multiple batches, images only for reference.

4814P-2-103

Part No 4814P-2-103
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 13 RES 10K OHM 14SOIC
Datasheet
4814P-2-103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4800P
Package Tape & Reel
Product Status Active
Circuit Type Bussed
Resistance (Ohms) 10k
Tolerance ±2%
Number of Resistors 13
Number of Pins 14
Power Per Element 80mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Type Surface Mount
Package / Case 14-SOIC (0.220", 5.59mm Width)
Supplier Device Package 14-SOM
Size / Dimension 0.390" L x 0.220" W (9.91mm x 5.59mm)
Height - Seated (Max) 0.094" (2.40mm)
Base Product Number 4814P
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0010
California Prop 65 Warning Information
Win Source Part Number 856153-4814P-2-103
Ultra Librarian 3D Model Ultra Librarian 4814P-2-103 CAD Model

Description

The 856153-4814P-2-103 is a resistor network array from Bourns Inc.

  • Series: 4800P
  • Application: Automotive
  • AEC-Q200: Yes
  • Mounting Type: Surface Mount
  • Size: 0.390" L x 0.220" W (9.91mm x 5.59mm)
  • Height: 0.094" (2.40mm)
  • Package Type: 14-SOIC (0.220", 5.59mm Width)
  • Pins: 14
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 10k Ohms
  • Circuit Type: Bussed
  • Resistors: 13
  • Power per Element: 80mW
  • Operating Temperature: -55°C to 125°C
  • REACH: Affected
  • Prop 65: Compliant
  • Standard Package: 2,000 pcs
  • Product Status: Active
