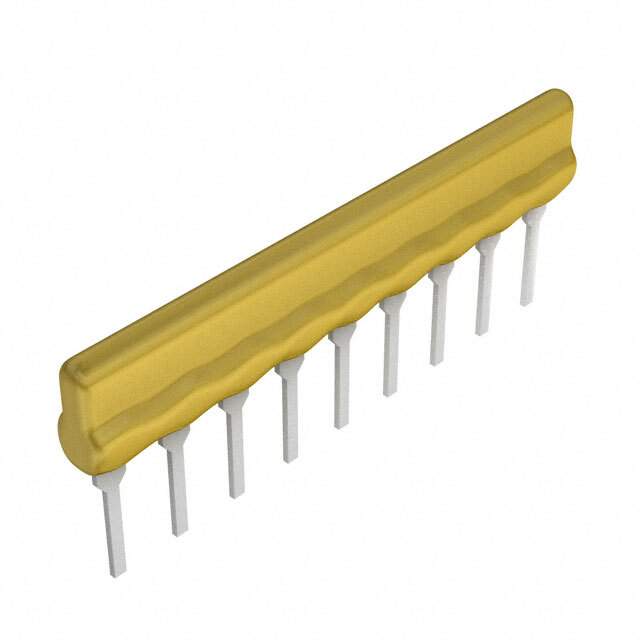

4609X-101-104LF Real Image
Same model may have multiple batches, images only for reference.

4609X-101-104LF

Part No 4609X-101-104LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 100K OHM 9SIP  /  100k Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
Datasheet
4609X-101-104LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4600X
Package Bulk
Circuit Type Bussed
Resistance (Ohms) 100k
Tolerance ±2%
Number of Resistors 8
Number of Pins 9
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 9-SIP
Supplier Device Package 9-SIP
Dimension 0.898" L x 0.098" W (22.81mm x 2.49mm)
Height - Seated (Max) 0.200" (5.08mm)
Base Product Number 4609X
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0050
Other Names 4609X101104LF
Standard Package 200
Win Source Part Number 973582-4609X-101-104LF
Ultra Librarian 3D Model Ultra Librarian 4609X-101-104LF CAD Model

Description

The Bourns Inc. 4600X series resistor network array is a through-hole mounted component with 8 resistors and 9 pins.

  • Circuit Type: bussed
  • Package: 9-SIP
  • Resistance: 100k ohms
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Power per Element: 200mW
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.898" L x 0.098" W (22.81mm x 2.49mm)
