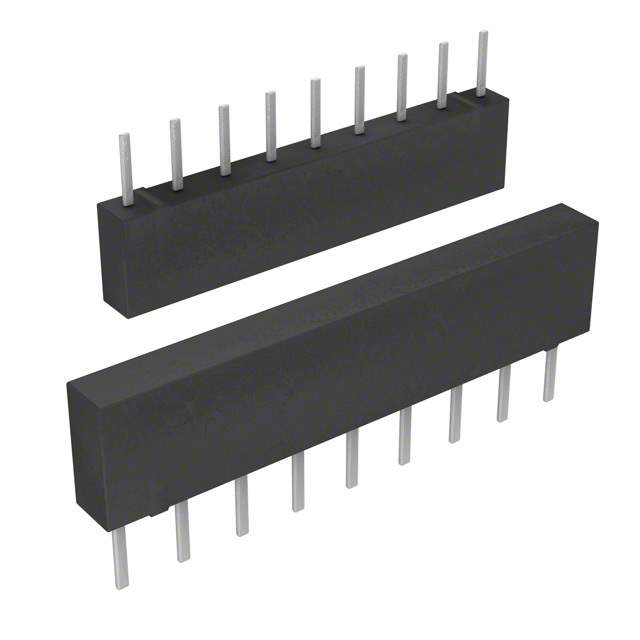

4309R-101-472LF Real Image
Same model may have multiple batches, images only for reference.

4309R-101-472LF

Part No 4309R-101-472LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 4.7K OHM 9SIP  /  4.7k Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
Datasheet
4309R-101-472LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4300R
Package Tube
Circuit Type Bussed
Resistance (Ohms) 4.7k
Tolerance ±2%
Number of Resistors 8
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 9
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 9-SIP
Supplier Device Package 9-SIP
Dimension 0.884" L x 0.085" W (22.45mm x 2.16mm)
Height - Seated (Max) 0.195" (4.95mm)
Base Product Number 4309R
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0050
Other Names 4309R101472LF
Standard Package 22
Win Source Part Number 1019369-4309R-101-472LF
Ultra Librarian 3D Model Ultra Librarian 4309R-101-472LF CAD Model

Description

The Bourns Inc. 1019369-4309R-101-472LF is a resistor network array that has 8 number of resistors and 4 number of pins.

  • Resistance: 4.7k
  • Tolerance: ±2%
  • Manufacturer: Bourns Inc.
  • Category: Resistors>Resistor Networks, Arrays
  • Win Source Part Number: 1019369-4309R-101-472LF
  • Power per element: 200mW
  • Mounting Type: Through hole
  • Height (seated): 0.195" (4.95mm)
  • Dimension: 0.884" L x 0.085" W (22.45mm x 2.16mm)
  • REACH affected: Yes
  • ECCN: EAR99
