Same model may have multiple batches, images only for reference.

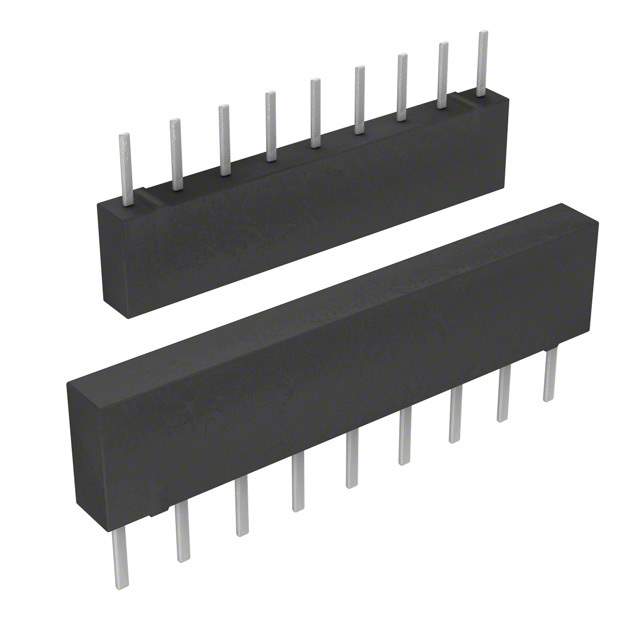

4309R-101-102LF Real Image
Same model may have multiple batches, images only for reference.

4309R-101-102LF

Part No 4309R-101-102LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 1K OHM 9SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Bourns Inc.
Packaging Tube
Circuit Type Bussed
Resistance (Ohms) 1k
Tolerance ±2%
Number of Resistors 8
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 9
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package 9-SIP
Supplier Device Package 9-SIP
Parts Dimension 0.884" L x 0.085" W (22.45mm x 2.16mm)
Height - Seated (Maximum) 0.195" (4.95mm)
Family Part Number 4309R
Manufacturer Pack Quantity 22
MSL Level 1 (Unlimited)
Win Source Part Number 729040-4309R-101-102LF
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4309R-101-102LF CAD Model

Description

This electronic component is a resistor with a Win Source Part Number of 729040-4309R-101-102LF.

  • Manufacturer: Bourns Inc.
  • Series: Part of the 4309R Series.
  • Category: Resistors
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 1k ohms
  • Circuit Type: Bussed circuit type
  • Resistors: 8 resistors
  • Pins: 9 pins
  • Power Per Element: 200mW
  • Description: Reliable and efficient component.
  • Suitability: Can be used in various electronic devices.
