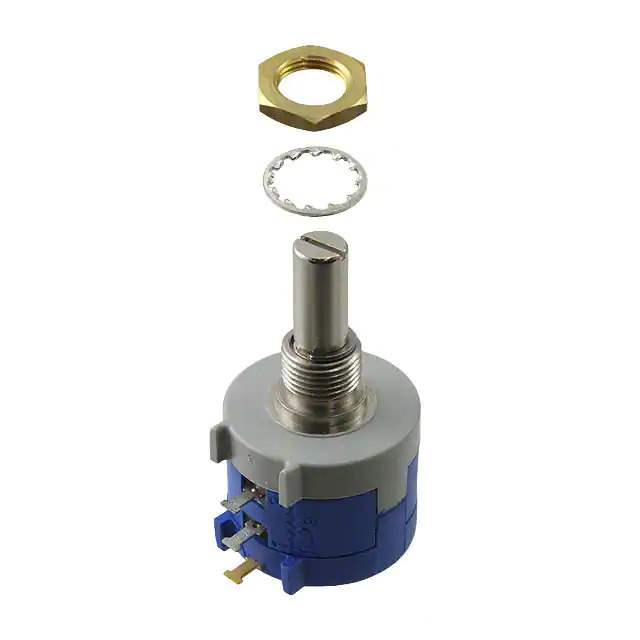

Same model may have multiple batches, images only for reference.

3590S-6-103L

Name: 3590S-6-103L
Brand: Bourns Inc.
SKU: 855795
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3590S-6-103L
Manufacturer	Bourns Inc.
Catalog	Rotary Potentiometers, Rheostats
Description	POT 10K OHM 2W WIREWOUND LINEAR
Datasheet	3590S-6-103L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr	Bourns Inc.
Series	3590
Package	Bulk
Product Status	Active
Resistance (Ohms)	10k
Tolerance	±5%
Power (Watts)	2W
Built in Switch	None
Number of Turns	10
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	±50ppm/°C
Rotation	3600°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.812" (20.63mm)
Actuator Diameter	0.236" (6.00mm)
Bushing Thread	M9 x 0.375
Mounting Type	Panel Mount
Size - Body	Round - 0.875" Dia (22.23mm)
Base Product Number	3590S
Standard Package	5 pcs
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.31.0000
California Prop 65	Warning Information
Win Source Part Number	855795-3590S-6-103L
Ultra Librarian 3D Model	Ultra Librarian 3590S-6-103L CAD Model

Alternative Products

Description

The 3590S-6-103L is a rotary potentiometer from Bourns Inc.

Series: 3590
Termination Style: Solder Lug
Package: Bulk
Standard Package: 5 pieces
Tolerance: ±5%
Temperature Coefficient: ±50ppm/°C
Power Rating: 2W
Actuator Type: Slotted
Actuator Length: 0.812" (20.63mm)
Resistance: 10k Ohms
Bushing Thread: M9 x 0.375
Turns: 10
Taper: Linear
Switch Built-In: No
Rotation: 3600°
Actuator Diameter: 0.236" (6.00mm)
Body Size: Round, 0.875" (22.23mm) Diameter
Mounting Type: Panel Mount
Product Status: Active
